Units per Shipping Box
12
Unit Calculated Volume
0.006589
Unit Calculated Weight
1.39
Summary
TP-Link TL-MR100-OUTDOOR. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi band
Single-band (2.4 GHz)
Wi-Fi standards
802.11b/802.11g/Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
300
3G/4G USB modem compatibility
No
WAN connection type
RJ-45
Ethernet LAN data rates
100
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN (RJ-45) ports
1
Security algorithms
WPA/WPA2/WPA2-PSK/WPA-PSK
Cables included
LAN (RJ-45)
Quick installation guide
Yes
Operating relative humidity (H-H)
10 - 90
Operating temperature (T-T)
-30 - 60
Storage relative humidity (H-H)
5 - 90
Storage temperature (T-T)
-40 - 70
Networking standards
IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Supported network protocols
IPv4, IPv6
Universal Plug and Play (UPnP)
Yes
Cabling technology
10/100Base-T(X)
MAC address filtering
Yes
Stateful Packet Inspection (SPI)
Yes
Receiver sensitivity
11g 54M: -74 dBm
11n HT20: -73 dBm
11n HT40: -70 dBm
Mobile network generation
4G
Wi-Fi Multimedia (WMM)/(WME)
Yes
3G bands supported
2100/850/900
3G standards
HSPA/HSPA+/UMTS
4G bands supported
1800/2100/2600/700/800/850/900
4G standard
LTE-TDD & LTE-FDD
Long Description
TP-Link TL-MR100-OUTDOOR. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK
International Protection (IP) code
IP65
Bullet Points

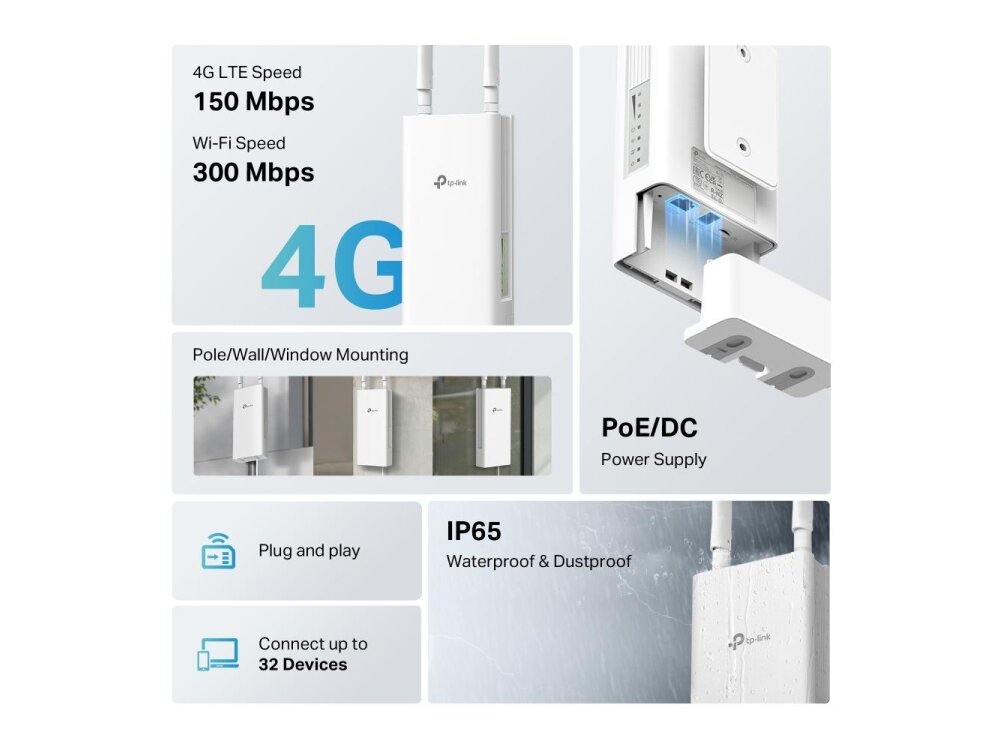

- 4G LTE and Fast Wi-Fi Speed : supports LTE up to 150 Mbps and Wi-Fi up to 300 Mbps on 2.4 GHz .*
- Durable Outdoor Enclosure: Robust outdoor connectivity and reliability with IP65 weatherproof protection** and ±6kV lightning protection & ±15kV ESD protection§

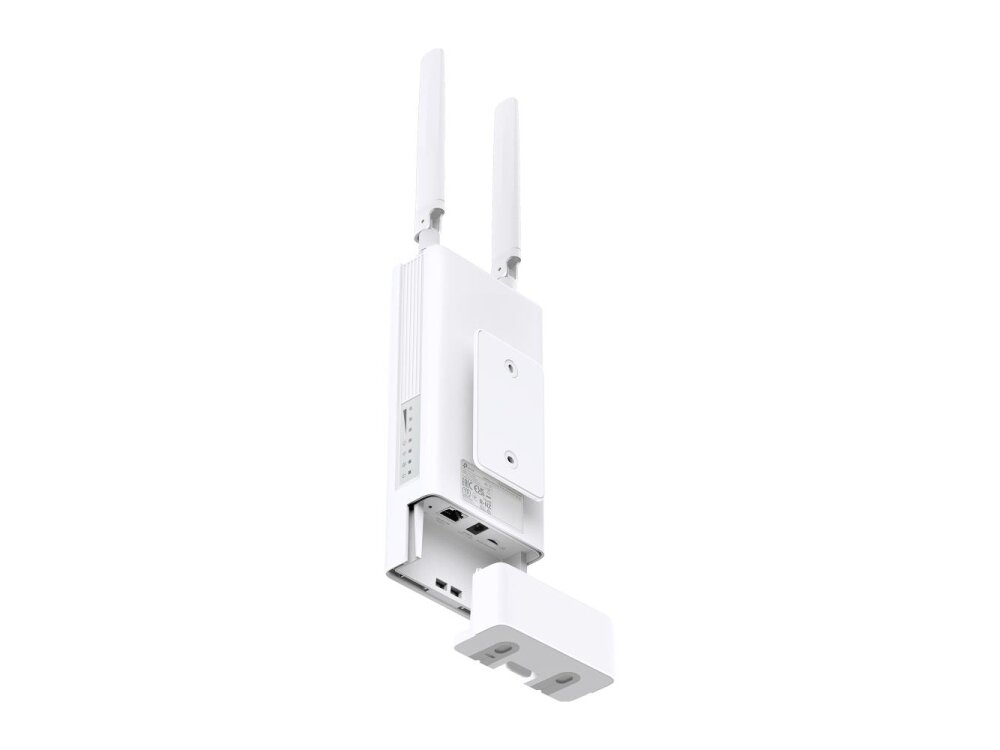

- Multiple Mounting Installation: Install easily anywhere with pole, wall, or window mounting for flexible, convenient use
- PoE/DC Power Supply: Supports 802.3af and passive PoE, enabling easy deployment
- Plug and Play: Plug in a SIM card to get instant internet access anywhere
- Simplified Setup: Easily set up and manage your network with the Tether app
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
48
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)
20
PoE injector included
Yes
Name
WRL 3G/4G ROUTER 300MBPS/TL-MR100-OUTDOOR TP-LINK
