Power Supply|GIGABYTE|GP-P750GM|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-P750GM
Kodas: 1306555Kaina 77.43 €Netinka kaina? Siūlyk savo!Preliminarus pristatymo terminas: 2 - 4 d. d.Šią prekę turime sandėlyje.Likutis: 92 vnt.Lizingo skaičiuoklės- artea
-

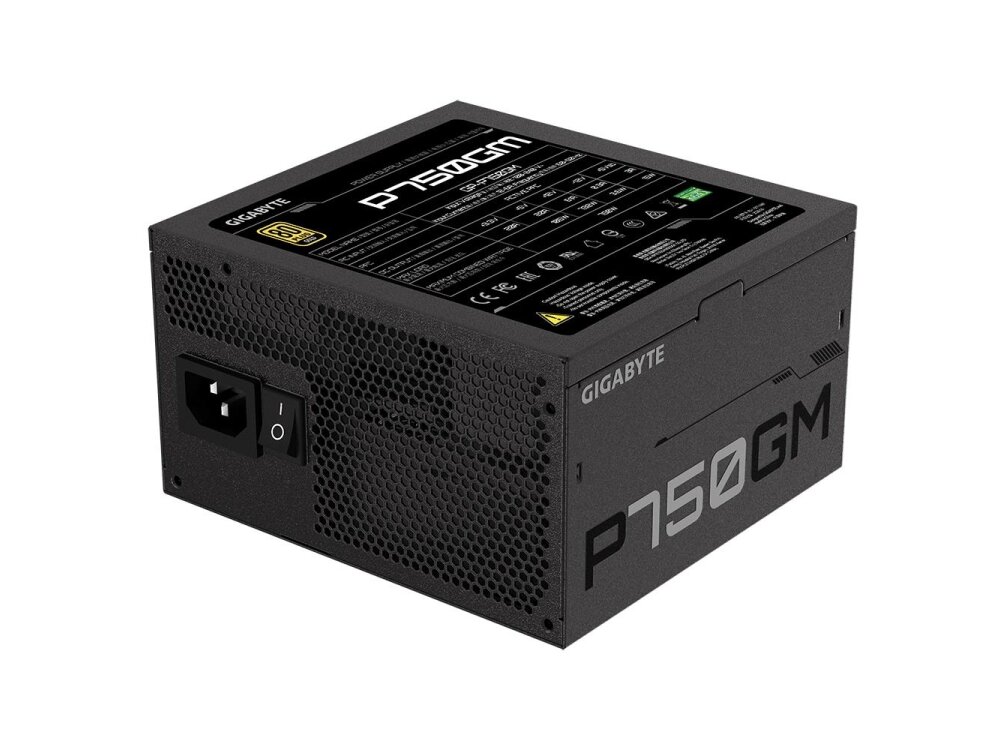

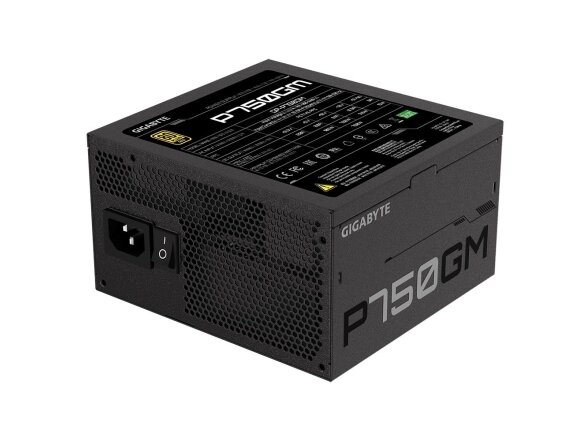

GIGABYTE P750GM
Power Supply
+ 80 PLUS Gold certified
+ Fully modular design
+ 120mm Smart Hydraulic Bearing (HYB) Fan
+ Main Japanese capacitors
+ Powerful single +12V rail
+ OVP/OPP/SCP/UVP/OCP/OTP protection
+ Compact size

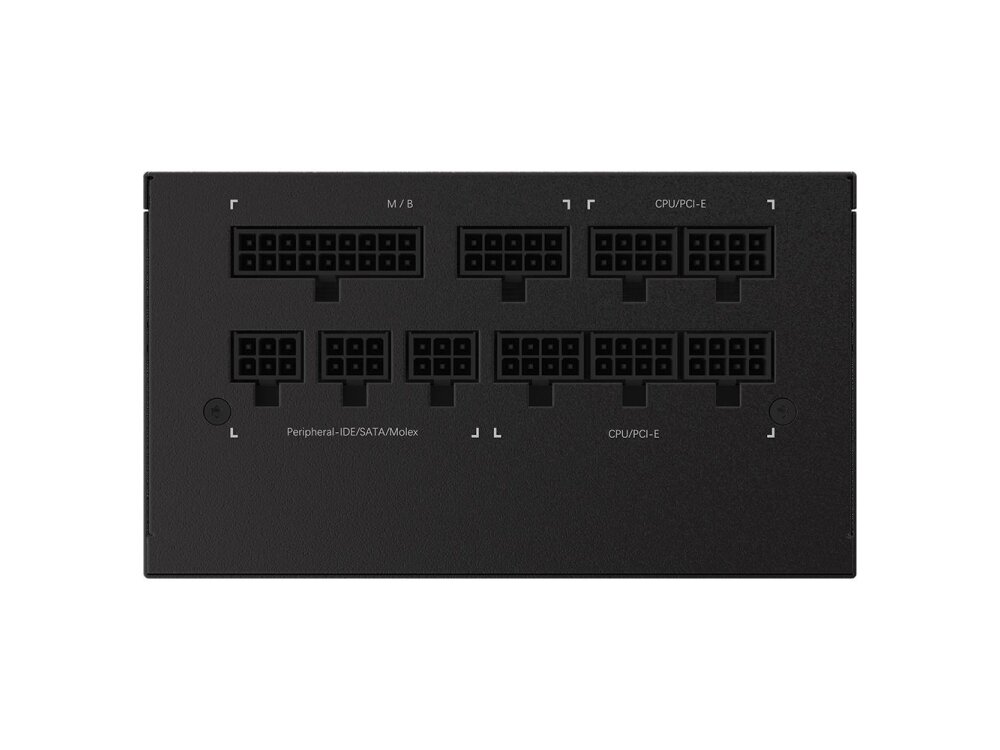

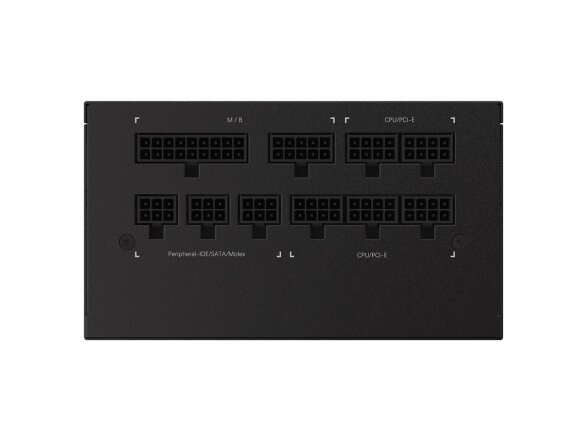

Connectors:
+ ATX/MB 20+4 Pin x 1
+ CPU/EPS 4+4 Pin x 2
+ PCI-e 6+2 Pin x 4
+ SATA x 8
+ 4 Pin Peripheral x 3 + 4-Pin floppy x 1
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

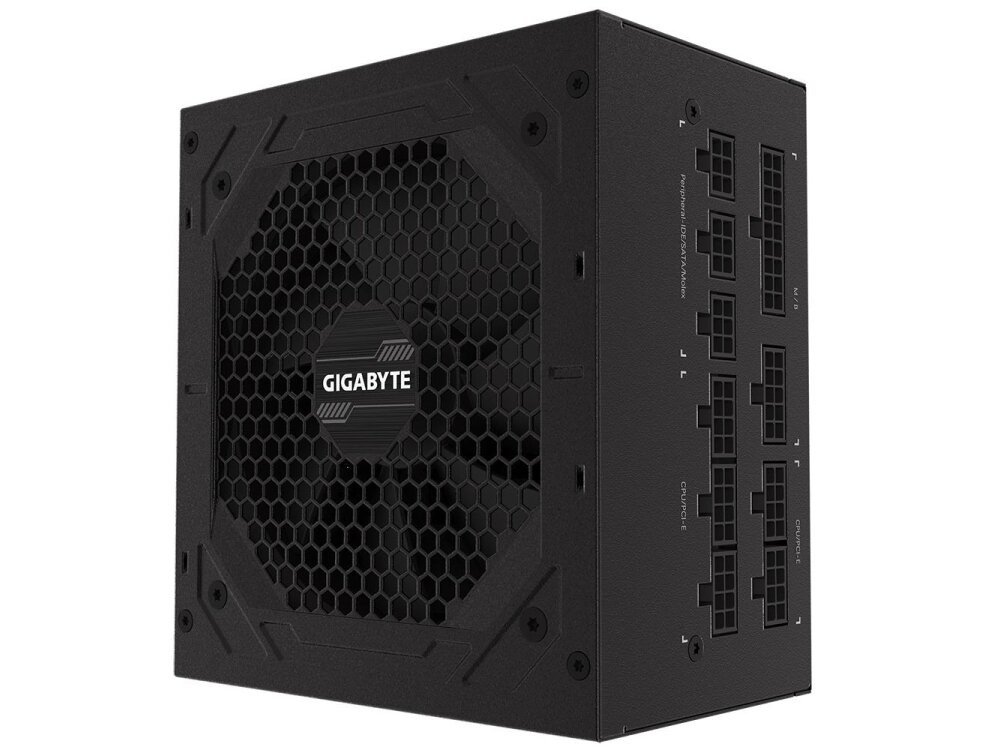

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.GamintojasGarantija36AprašymasGIGABYTE P750GM
Power Supply
+ 80 PLUS Gold certified
+ Fully modular design
+ 120mm Smart Hydraulic Bearing (HYB) Fan
+ Main Japanese capacitors
+ Powerful single +12V rail
+ OVP/OPP/SCP/UVP/OCP/OTP protection
+ Compact size
Connectors:
+ ATX/MB 20+4 Pin x 1
+ CPU/EPS 4+4 Pin x 2
+ PCI-e 6+2 Pin x 4
+ SATA x 8
+ 4 Pin Peripheral x 3 + 4-Pin floppy x 1
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.Gamintojo internetinis puslapiswww.gigabyte.com/Power-Supply/GP-P750GM#kfModelio pavadinimasGP-P750GMMaitinimo šaltininio tipasATX 2.31Maitinimo šaltinio galia750Matmenys150 x 140 x 86 mmKategorijos kodasPSUSpalvaBlackMaitinimo bloko efektyvumas80 PLUS GOLDCategory CodePSUSummaryGIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATALong DescriptionGIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATABullet Points- 80 PLUS Gold certified
- Fully modular design
- 120mm Smart Hydraulic Bearing (HYB) Fan
- Main Japanese capacitors
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 5 years warranty (Adjusted according to different regions)
NameCASE PSU ATX2.31 750W/GP-P750GM GIGABYTEBendroji galia750AC įėjimo įtampa100 - 240AC įėjimo dažnis50 - 60Įvesties srovė12-6Efektyvumas90Maitinimo apsaugos ypatybėsApsauga nuo per didelės įtampos/Apsauga nuo perkaitimo/Minimaliosios įtampos apsauga/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovęMotininės plokštės maitinimo jungtis20+4 pin ATXSATA elektros jungčių skaičius8Periferinė (Molex) galios jungtis (4-pin)4CPU maitinimo jungtis (4 + 4 kaisčiai)TaipATX maitinimo jungtis (20 + 4 kaisčiai)TaipFloppy įrenginio maitinimo jungtis1PaskirtisPCMaitinimo bloko (PSU) formos koeficientasATXATX versija2.31Produkto spalvaJuodaAušinimo tipasAktyvusVentiliatoriaus skersmuo120Ventiliatorių skaičius1Ventiliatoriaus vietaViršusPlotis150Ilgis140Aukštis86Bruto svoris2.63Neto svoris2Vienetų skaičius vienoje siuntimo dėžėje5Vieneto plotis12Vieneto gylis25.5Vieneto aukštis21Motininės plokštės maitinimo kabelio ilgis610SATA maitinimo kabelio ilgis150/600Periferinio („Molex“) maitinimo kabelio ilgis120/500Perdavimo laidu tipasVisiškai modulinisGalios koeficiento pataisos (PFC) tipasAktyvusPCI „Express“ maitinimo jungtys (6 + 2 kontaktai)4PCI „Express“ galia kabelio ilgis600CPU maitinimo laido ilgis600Sertifikatas 80 PLUS80 PLUS GoldEPS maitinimo jungtis (4 + 4 kontaktai)TaipDarniosios sistemos (DS) kodas84733020PCI „Express“ jungtisTaipPridėti kabeliaiCPU,PCIe,Peripheral (Molex),SATALaikymo laikas16Vidutinis laikas tarp trikčių (MTBF)100000Diskelio įtaiso tvarkyklės laido ilgis120Išbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą
