Power Supply|GIGABYTE|GP-AE1000PM PG5 ICE|1000 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|GP-AE1000PMPG5ICE

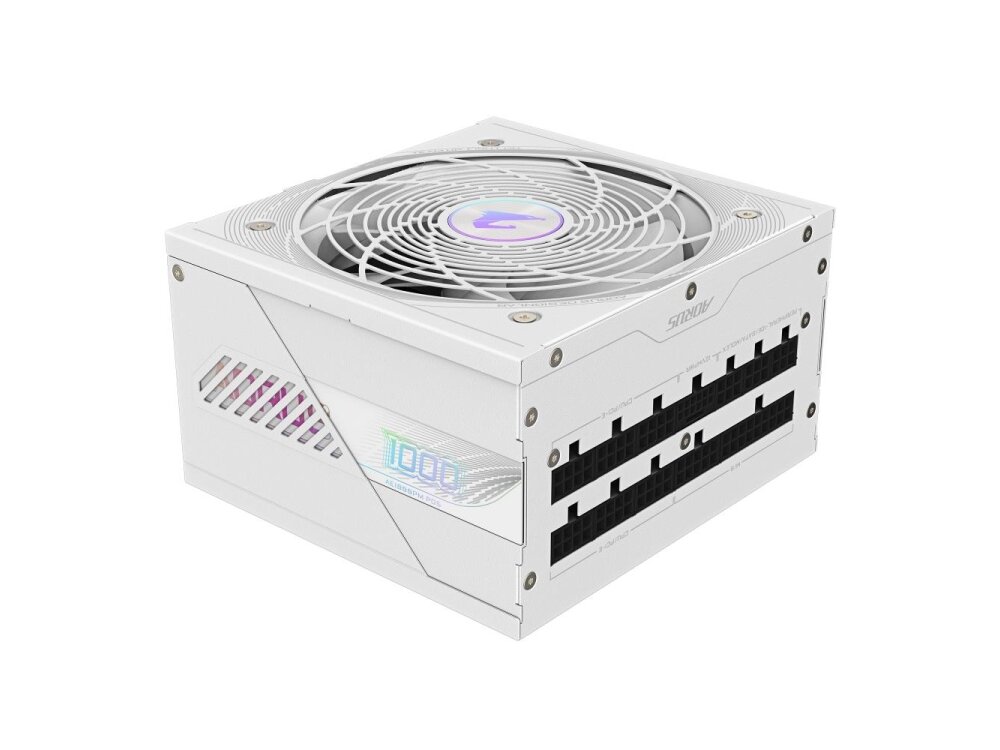

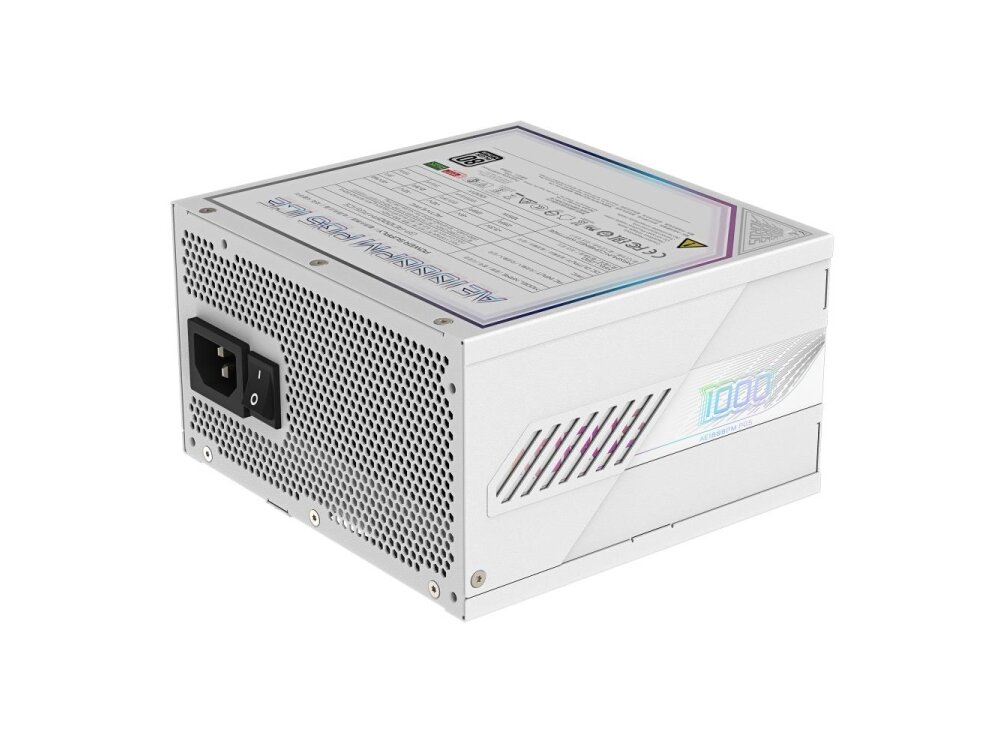

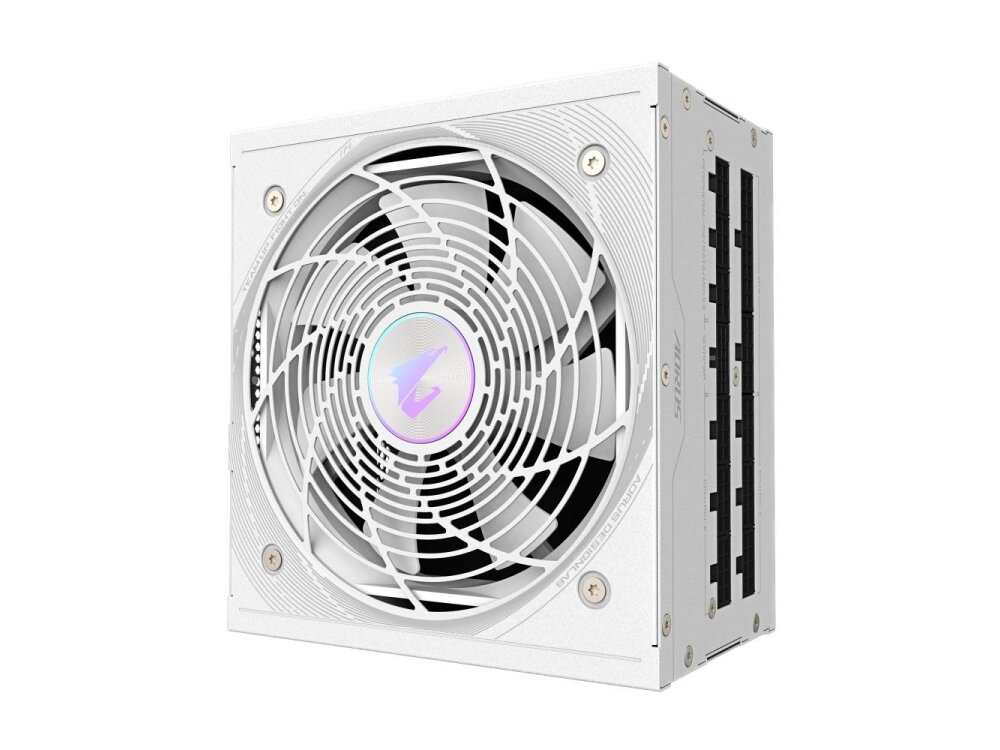

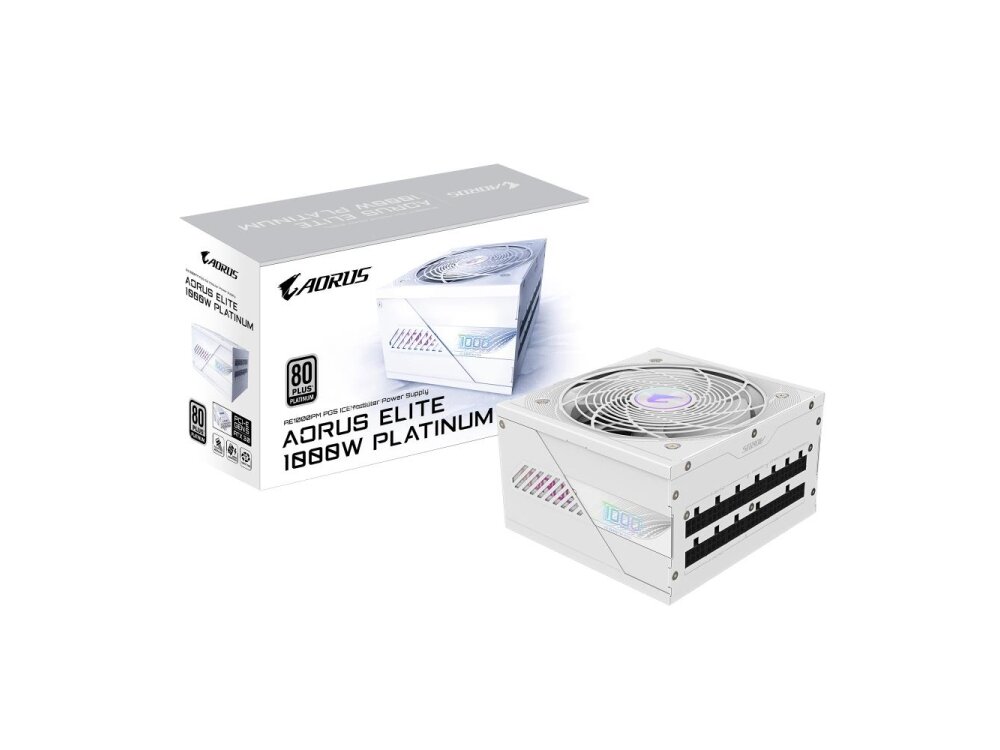

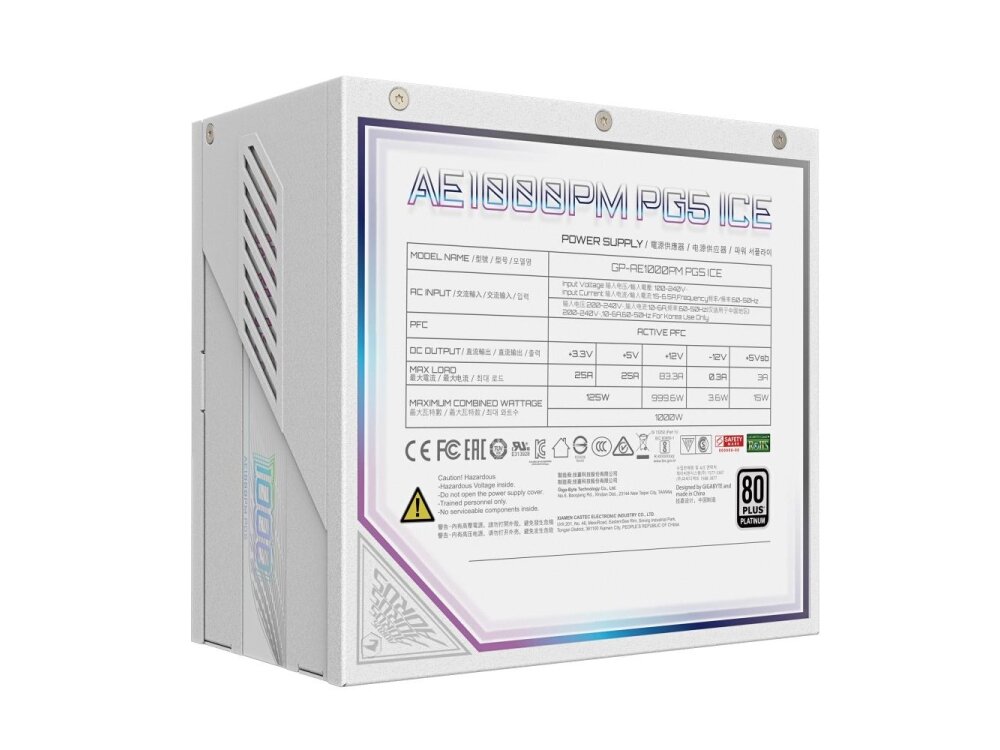

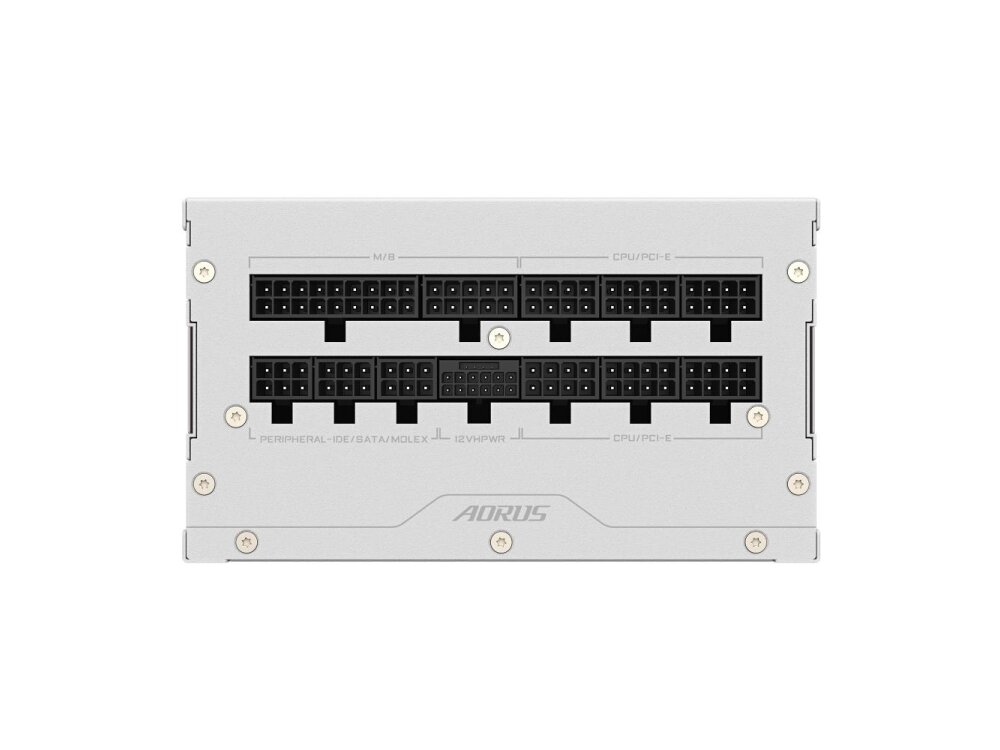

AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE





ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)


The AE1000PM PG5 ICE can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the Intel ATX 3.0 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power.





AORUS magnetic plate design


The unique AORUS magnetic plate can be attached to different sides of the power supply based on the user’s preference, presenting the best visual effect from any angle. Additionally, while the plate being moved on the case, its neon color printing with metallic sheen creates solid and hollow special effects for the AORUS logo.





80 PLUS Platinum certified


80 Plus Platinum certified ensures to deliver 92% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.





100% Japanese capacitors


All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

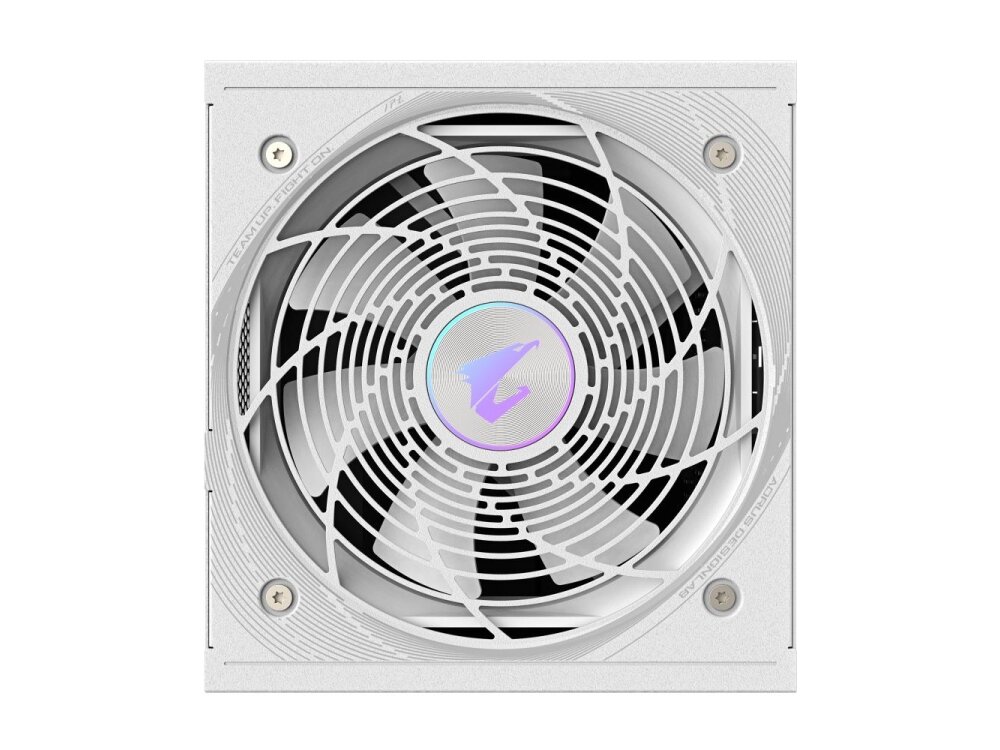

120mm smart Fluid Dynamic Bearing (FDB) fan


High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 50% load).





Compact design


GIGABYTE's engineering expertise in heat dissipation and material selection has shrunk the length of the power supply to an impressive 140 mm, ensuring compatibility with even space-constrained chassis.
Description: AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE





ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)


The AE1000PM PG5 ICE can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the Intel ATX 3.0 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power.





AORUS magnetic plate design


The unique AORUS magnetic plate can be attached to different sides of the power supply based on the user’s preference, presenting the best visual effect from any angle. Additionally, while the plate being moved on the case, its neon color printing with metallic sheen creates solid and hollow special effects for the AORUS logo.





80 PLUS Platinum certified


80 Plus Platinum certified ensures to deliver 92% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.





100% Japanese capacitors


All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.





120mm smart Fluid Dynamic Bearing (FDB) fan


High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 50% load).





Compact design


GIGABYTE's engineering expertise in heat dissipation and material selection has shrunk the length of the power supply to an impressive 140 mm, ensuring compatibility with even space-constrained chassis.
Vendor Homepage: www.gigabyte.com/Power-Supply/GP-AE1000PM-PG5-ICE-rev-10#kf
Model name: GP-AE1000PM PG5 ICE
Shipping Box Depth: 63.5
Shipping Box Height: 38
Shipping Box Weight: 18.66
Shipping Box Width: 22.5
Unit Brutto Volume: 0.01086
Unit Net Weight: 3
Unit Gross Weight: 3.73
Unit Box Width: 0.12
Unit Box Length: 0.34
Unit Box Height: 0.205
Full Description Line: GP-AE1000PM PG5 ICE|For gaming|ATX 3.0|1000 Watts|Cooling System 12cm fan|80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours
