Power Supply|GIGABYTE|550 Watts|Efficiency 80 PLUS SILVER|PFC Active|MTBF 100000 hours|GP-P550SS
Kodas: 1421524Kaina 40.54 €Netinka kaina? Siūlyk savo!Preliminarus pristatymo terminas: 2 - 4 d. d.Šią prekę turime sandėlyje.Likutis: 181 vnt.Lizingo skaičiuoklės- artea
-

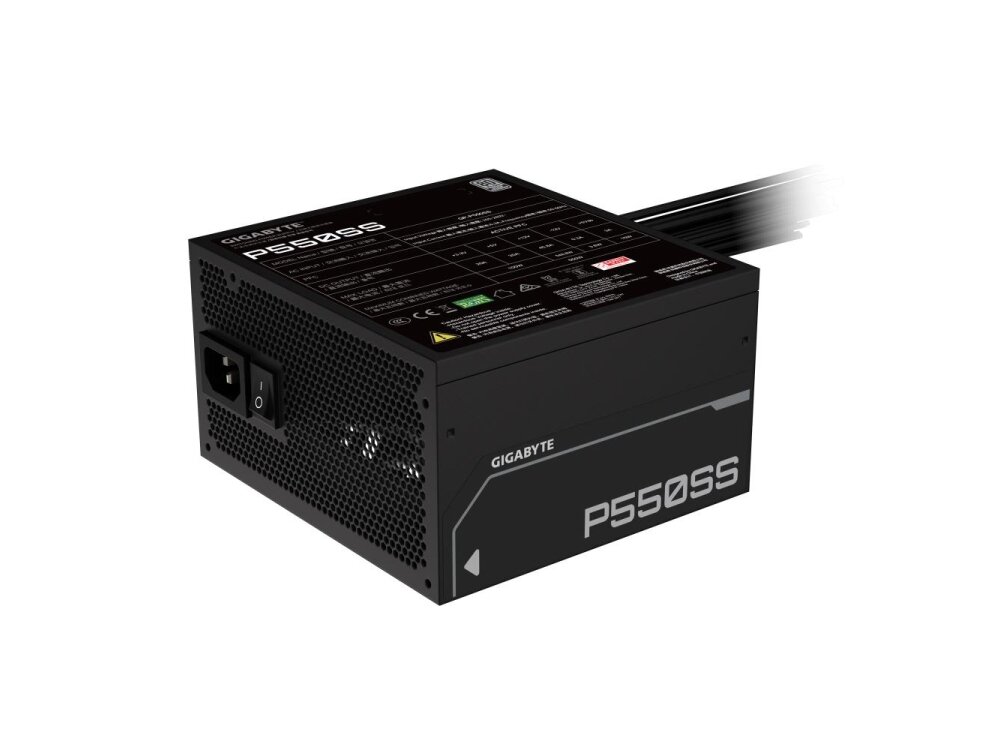

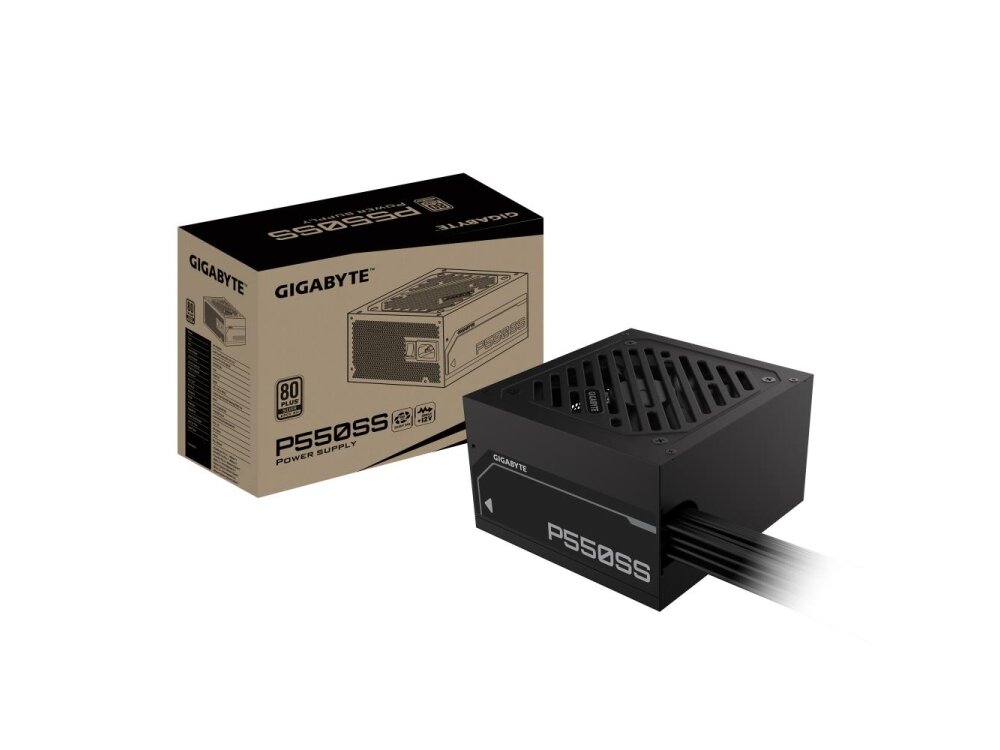

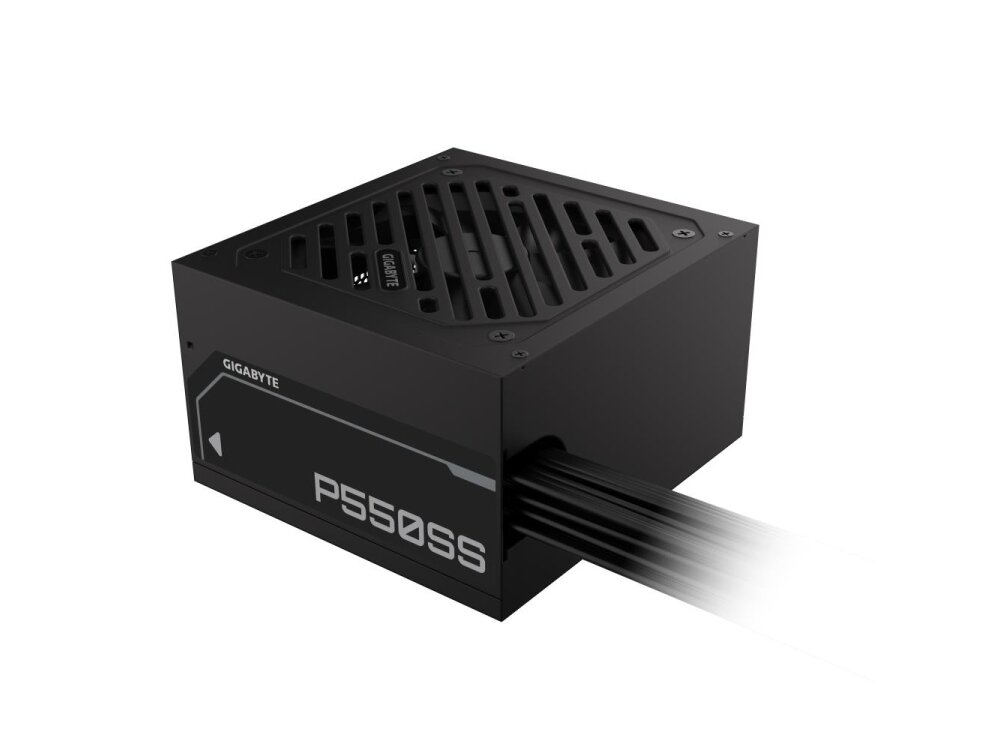

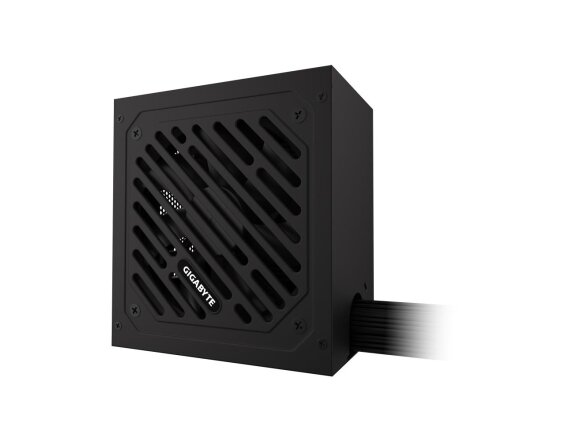

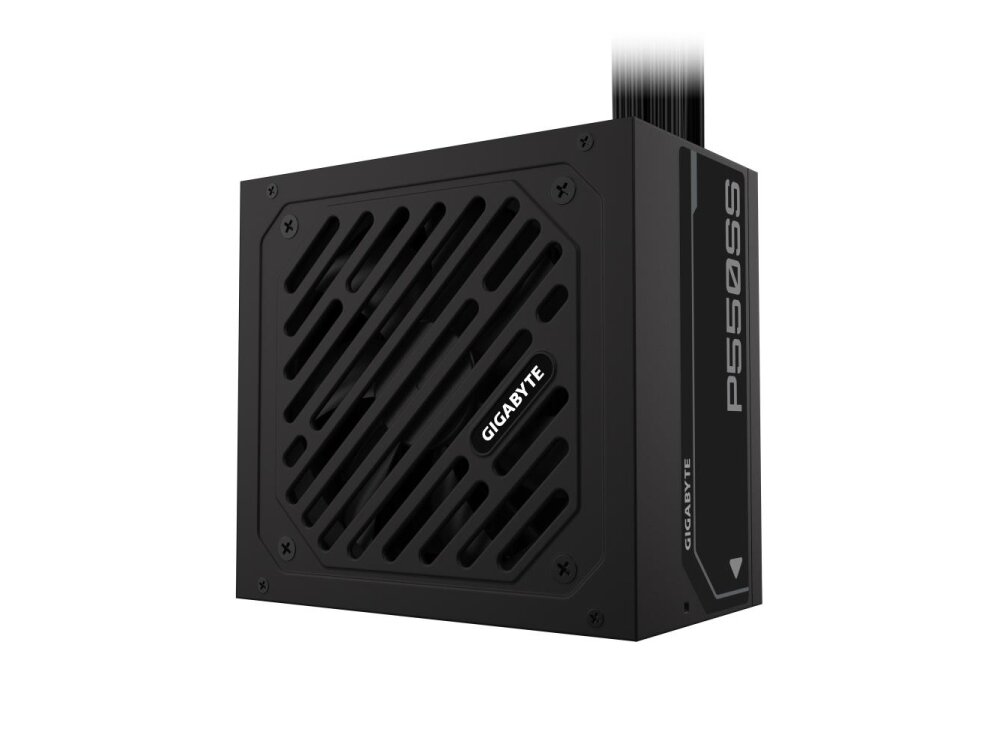

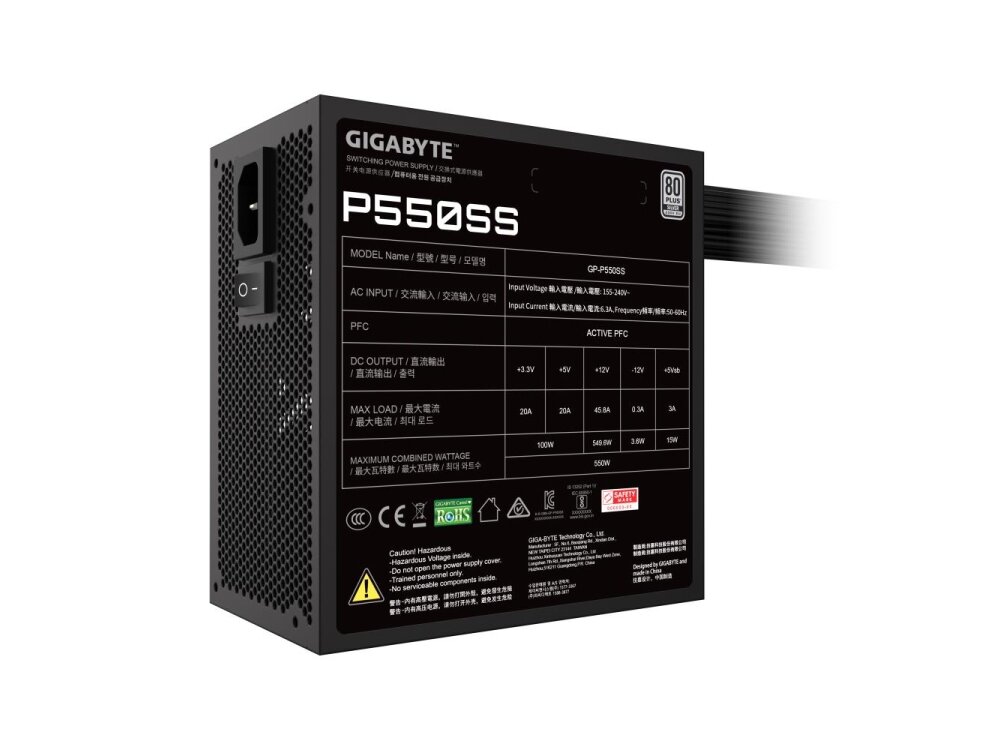

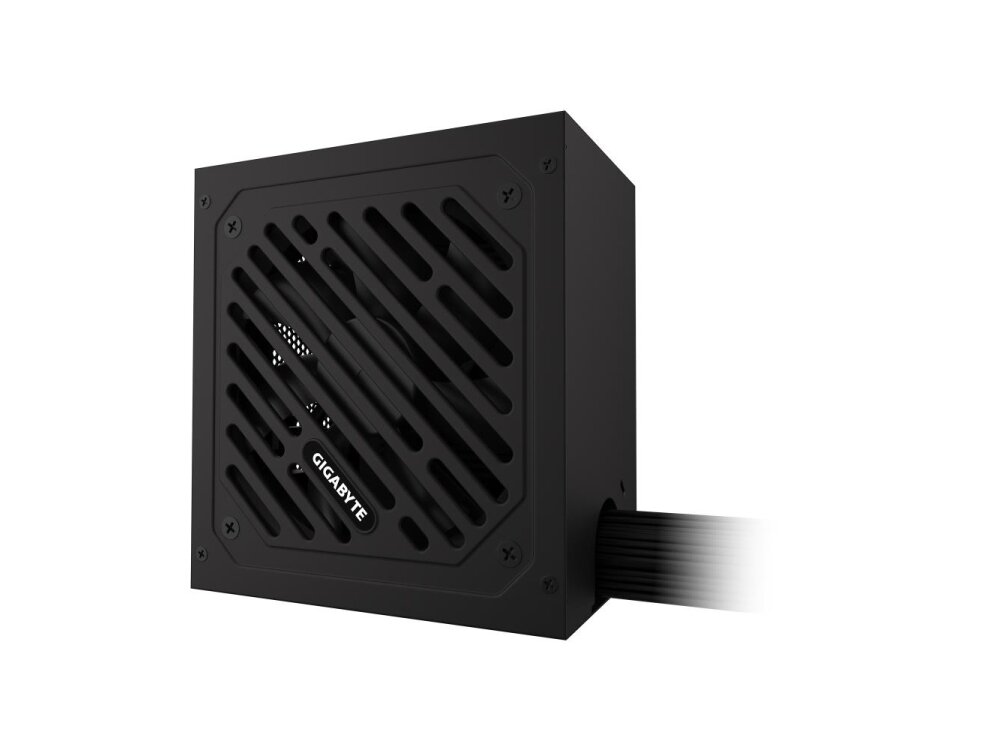

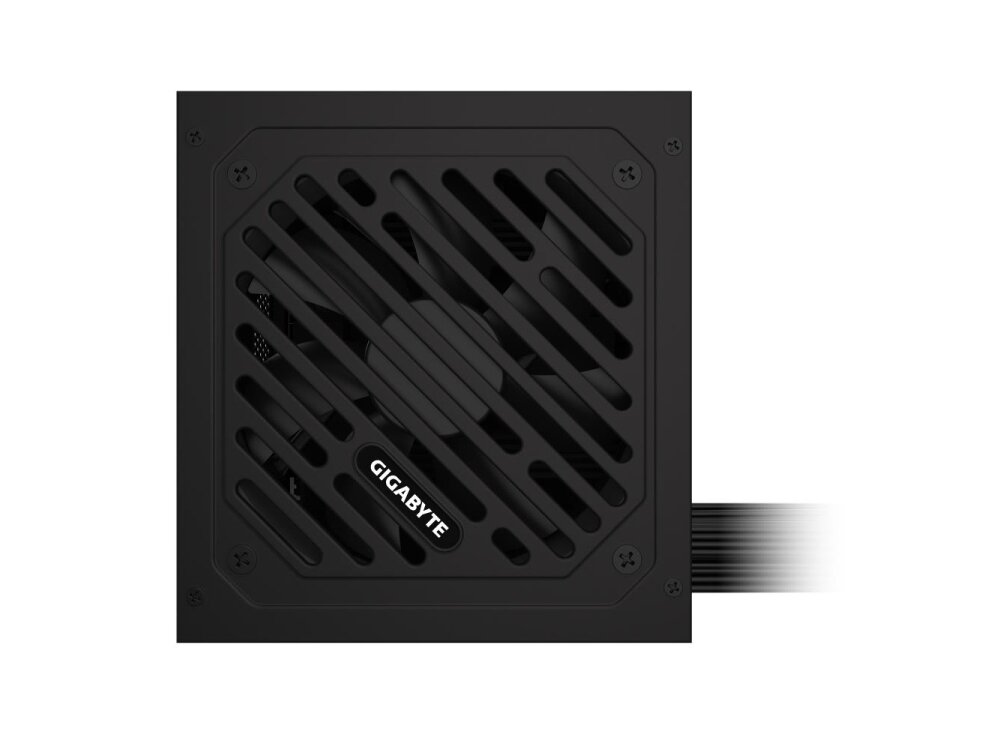

GIGABYTE P550SS
+ 80 PLUS Silver certified (230V EU)
+ Support Intel ATX 3.0 standard
+ 120mm Fluid Dynamic Bearing (FDB) Fan
+ Flat cable design
+ Powerful single +12V rail
+ OVP/OPP/SCP/UVP/OCP/OTP protection
The P550SS can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.GamintojasGarantija36AprašymasGIGABYTE P550SS
+ 80 PLUS Silver certified (230V EU)
+ Support Intel ATX 3.0 standard
+ 120mm Fluid Dynamic Bearing (FDB) Fan
+ Flat cable design
+ Powerful single +12V rail
+ OVP/OPP/SCP/UVP/OCP/OTP protection
The P550SS can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise.Gamintojo internetinis puslapiswww.gigabyte.com/Power-Supply/GP-P550SS#kfMaitinimo šaltininio tipasATX 3.0Maitinimo šaltinio galia550Matmenys150 x 140 x 86 mmKategorijos kodasPSUModelisGP-P550SSMaitinimo bloko efektyvumas80 PLUS SILVEREfficiency90Category CodePSUUnits per Shipping Box5Unit Calculated Volume0.007577Product Net Weight1.8Unit Calculated Weight2.2AC input frequency50/60AC input voltage155-240Combined power (+5Vsb)15Input current6.3Max output current (+3.3V)20Max output current (+5V)20Max output current (+5Vsb)3Max output current (-12V)0.3Power Factor Correction (PFC) typeActiveTotal power550Motherboard power connector20+4 pin ATX80 PLUS certification80 PLUS SilverATX version3.1Fan diameter120Product colourBlackWeight1860SummaryGIGABYTE P550SS Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mmCombined power (+12V)549.6Combined power (+3.3V)100Combined power (+5V)100Combined power (-12V)3.6Hold time16Max output current (+12V)45.8Power protection featuresOver current/Over power/Over voltage/Overheating/Short circuit/Under voltageATX power connector (20+4 pin)YesCabling typeNon-ModularCPU power connector (4+4 pin)YesFloppy disk drive connectorYesFloppy drive power connector2Motherboard power cable length600Number of SATA power connectors5PCI Express connectorYesPCI Express power connectors (6+2 pin)2Peripheral (Molex) power connectors (4-pin)4Bearing technologyBall bearingMean time between failures (MTBF)100000Power supply unit (PSU) form factorATXPurposePCCooling typeActiveFan locationTopNumber of fans1On/off switchYesPackage typeBoxPackage weight2316Power Good signal delay range100 - 150Package depth206Package height117Package width254Warranty period3NameCASE PSU ATX2.31 550W/GP-P550SS GIGABYTEUnit Width20.5Unit Depth25.5Unit Height11.5Išbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą
