Unit Calculated Volume
0.007663
Unit Calculated Weight
1.82
International Protection (IP) code
IP66, IP67
Connectivity technology
Wired
Lens viewing angle, horizontal
29.4 - 11
Lens viewing angle, vertical
16.5 - 6.3
Minimum illumination
0.01
Optical sensor size
1/2.8
Maximum resolution
1920 x 1080
Video compression formats
AV1/H.264/H.265/M-JPEG
Compatible memory cards
MicroSD (TransFlash)/MicroSDHC/MicroSDXC
Ethernet LAN (RJ-45) ports
1
DC output voltage
10,12,15,16,24,28
Operating temperature (T-T)
-40 - 60
Camera shutter speed
1/37000 - 2
Summary

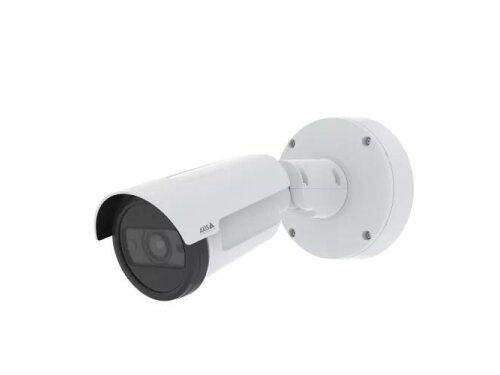

Axis P1485-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 29.4 - 11°, Lens viewing angle, vertical: 16.5 - 6.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 10.8 - 28.2 mm
Placement supported
Outdoor
Housing material
Aluminium/Polycarbonate (PC)
Image quality adjustment
Brightness/Contrast/Saturation/Sharpness/White balance
Noise reduction technology
2D noise reduction,3D noise reduction
Ethernet interface type
Fast Ethernet/Gigabit Ethernet
Video motion detection
Yes
Power consumption (max)
12.95
Wide Dynamic Range (WDR)
Yes
Maximum aperture number
1.76
Networking standards
IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Card reader integrated
Yes
Infrared (IR) cut-off filter
Yes
Focal length range
10.8 - 28.2
Operating relative humidity (H-H)
10 - 100
Storage relative humidity (H-H)
5 - 95
Storage temperature (T-T)
-40 - 65
Network access storage (NAS)
Yes
Quality of Service (QoS) support
Yes
Minimum aperture number
1.7
Audio system full duplex
Yes
Name
NET CAMERA P1485-LE 28MM/03182-001 AXIS
