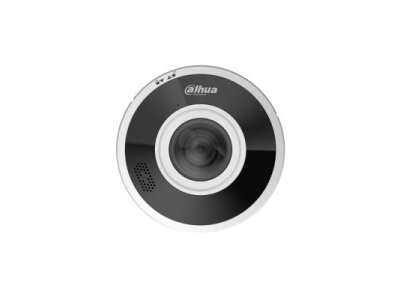

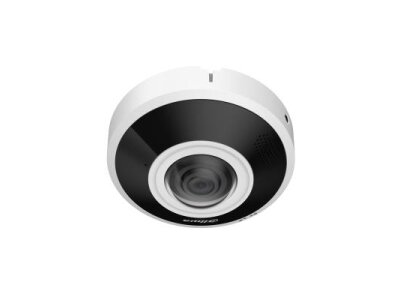

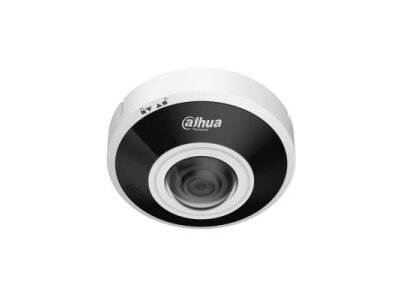

NET CAMERA 6MP FISHEYE DOME/IPC-EBW5641-AS DAHUA

> 6-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.


> Outputs max. 6 MP (2560 × 2560)@25/30 fps.


> 360° fisheye monitoring covers all the corners without any blind zone.


> Supports fisheye front-dewarp and back-dewarp.


> Supports split screen for 2 and 4 windows.


> Built-in IR LED, and the max. illumination distance is 15 m.


> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.


> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.


> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.


> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;


> Built-in speaker and dual Mic. Supports two-way talk.


> 12 VDC/ PoE(802.3af) power supply.


> IP67 and IK10 protection.


> Focal Length 1.68 mm, Field of View 185*185°



Description: > 6-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.


> Outputs max. 6 MP (2560 × 2560)@25/30 fps.


> 360° fisheye monitoring covers all the corners without any blind zone.


> Supports fisheye front-dewarp and back-dewarp.


> Supports split screen for 2 and 4 windows.


> Built-in IR LED, and the max. illumination distance is 15 m.


> ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.


> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.


> With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.


> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;


> Built-in speaker and dual Mic. Supports two-way talk.


> 12 VDC/ PoE(802.3af) power supply.


> IP67 and IK10 protection.


> Focal Length 1.68 mm, Field of View 185*185°



Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Panoramic-Series/Fisheye-Series/IPC-EBW5641-AS
Model: IPC-EBW5641-AS
Full Description Line: Type HDTV/Megapixel|Pixel Resolution 6 Mega Pixel|Focal Length 1.68 mm|IR Illumination|Sensor size 1/2.5" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0006 Lux|Effective pixels 2560 (H) × 2560 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE|Power supply requirements 12 VDC, 1 A; PoE (802.3af)|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions Φ122 mm × 53.3 mm
