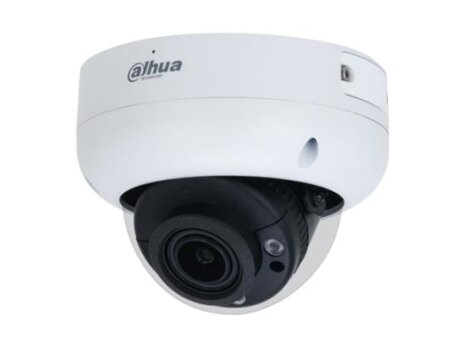

NET CAMERA 5MP IR DOME/HDBW3541R-ZAS-27135-S2 DAHUA
Kodas: 1387135Kaina 411.28 €Netinka kaina? Siūlyk savo!Preliminarus pristatymo terminas: 2 - 4 d. d.Šią prekę turime sandėlyje.Likutis: 3 vnt.Lizingo skaičiuoklės- artea
-
- 1/2.7” CMOS, 2592×1944 @ 20FPS
- Minimum illumination: 0.005 lux @ F1.5 (Color, 30 IRE); 0.0005 lux @ F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
- True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR
- Motorized vari-focal 2.7 mm-13.5 mm fixed lens (114°–32°)
- Up to 40 meters Smart IR Illumination
- H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+ encoding, ONVIF (Profile S/Profile G); CGI; P2P
- 1/1 Alarm I/O, 1/1 Audio I/O, Built-in MIC
- Micro SD card up to 256GB supported
- Metal case, IP67, IK10, -30°C~+60°C, PoE / 12VDC power, 9.2W max
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Free IP monitoring software availableGamintojasGarantija36Category CodeFNCUnit Calculated Volume0.006868Product Net Weight0.713Unit Calculated Weight0.867Units per Shipping Box30Form factorDomeInternational Protection (IP) codeIP67Product colourBlack/WhiteConnectivity technologyWiredTypeIP security cameraLens viewing angle, diagonal138 - 36Lens viewing angle, horizontal114 - 32Lens viewing angle, vertical58 - 17Optical sensor size1/2.7Sensor typeCMOSLED typeIRMaximum resolution2960 x 1668Total megapixels5Video compression formatsH.264/H.264B/H.264H/H.265/M-JPEGBuilt-in microphoneYesWi-FiNoCompatible memory cardsMicroSD (TransFlash)Maximum memory card size256Ethernet LAN (RJ-45) ports1DC output voltage12Power source typeDC,PoEOperating temperature (T-T)-30 - 60Diameter94Weight713Night visionYesAdjustment shutter speedAuto/ManualCamera shutter speed1/3 - 1/100000SummaryDahua Technology WizSense HDBW3541R-ZAS-27135-S2. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 114 - 32°, Lens viewing angle, vertical: 58 - 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.7 - 13.5 mm, Focus: Motorized, Detect distance (wide): 64 mPlacement supportedOutdoorHousing materialMetalIK codeIK10Mounting typeCeiling/wallAngle of rotation355Pan range0 - 355Tilt angle range0 - 80Night vision distance40Number of illumination LEDs3Back Light Compensation (BLC)YesHighlight Compensation (HLC)YesNoise reductionYesNoise reduction technology3D noise reductionPrivacy maskingYesSmart IRYesSupported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576BluetoothNoEthernet interface typeFast EthernetEthernet LANYesSupported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;Built-in HDDNoMirrorYesPower consumption (max)9.2Number of cameras1Number of sensors1Progressive scanYesNumber of lenses1Bit rateH.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbpsNetworking standardsIEEE 802.3afFrame rate30Card reader integratedYesWeb-based managementYesPackage weight986Behavior analysisIntrusion detectionWeb browserYesRegion of Interest (ROI) encodingYesFocal length range2.7 - 13.5Number of users20Streaming methodMulticastDynamic range120Number of Privacy masking areas4Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)Signal-to-Noise Ratio (SNR)56Voice codecsG.711a/G.711Mu/G.723/G.726/PCMPower consumption (typical)4Operating relative humidity (H-H)0 - 95Storage temperature (T-T)-40 - 60Audio input channels1.0Audio output channels1.0Power consumption (Power over Ethernet (PoE))4.9Alarm input channels1Alarm output channels1Camera shutter typeElectronicWhite balanceAuto/Manual/Natural/Outdoor/Regional custom/Street lampGain control typeAutoQuality of Service (QoS) supportYesInternal memory512ROM capacity128Mobile operating systems supportedAndroid/iOSMinimum aperture number1.5Fog proofYesClosest focusing distance0.8Detect distance (tele)210Detect distance (wide)64Identify distance (tele)21Identify distance (wide)6.4Observe distance (tele)84Observe distance (wide)25.6Recognize distance (tele)42Recognize distance (wide)12.8FocusMotorizedImage stabilizerYesLong DescriptionDahua Technology WizSense HDBW3541R-ZAS-27135-S2. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 114 - 32°, Lens viewing angle, vertical: 58 - 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.7 - 13.5 mm, Focus: Motorized, Detect distance (wide): 64 mBullet Points- 5MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images
- Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 40 m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic
- 12 VDC/PoE power supply, easy for installation
- IP67, IK10 protection
- SMD 4.0, AI SSA
NameNET CAMERA 5MP IR DOME/HDBW3541R-ZAS-27135-S2 DAHUAUnit Width19Unit Depth19Unit Height16.5Išbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą
