  •   MB AMD B850 SAM5 MATX/B850M A ELT WF6E 1.1 GIGABYTE

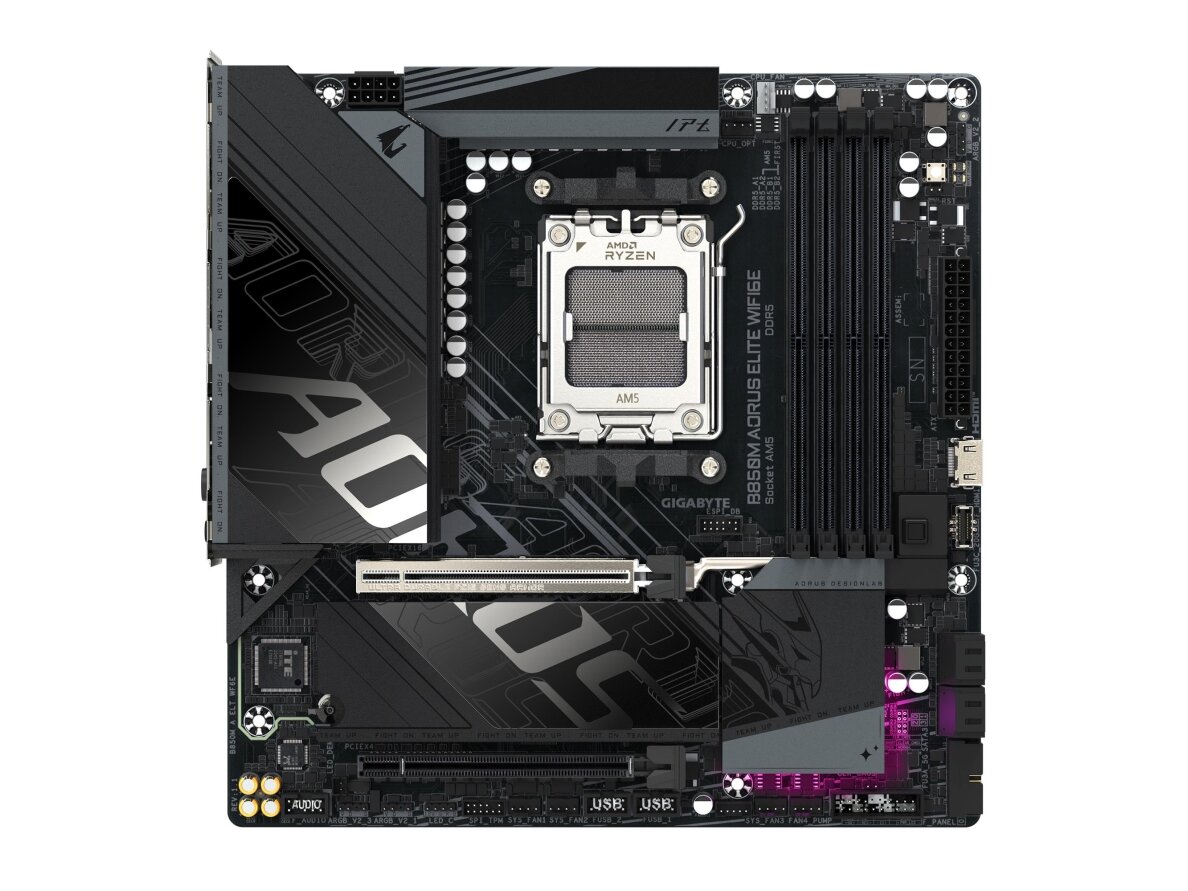

      MB AMD B850 SAM5 MATX/B850M A ELT WF6E 1.1 GIGABYTE 1

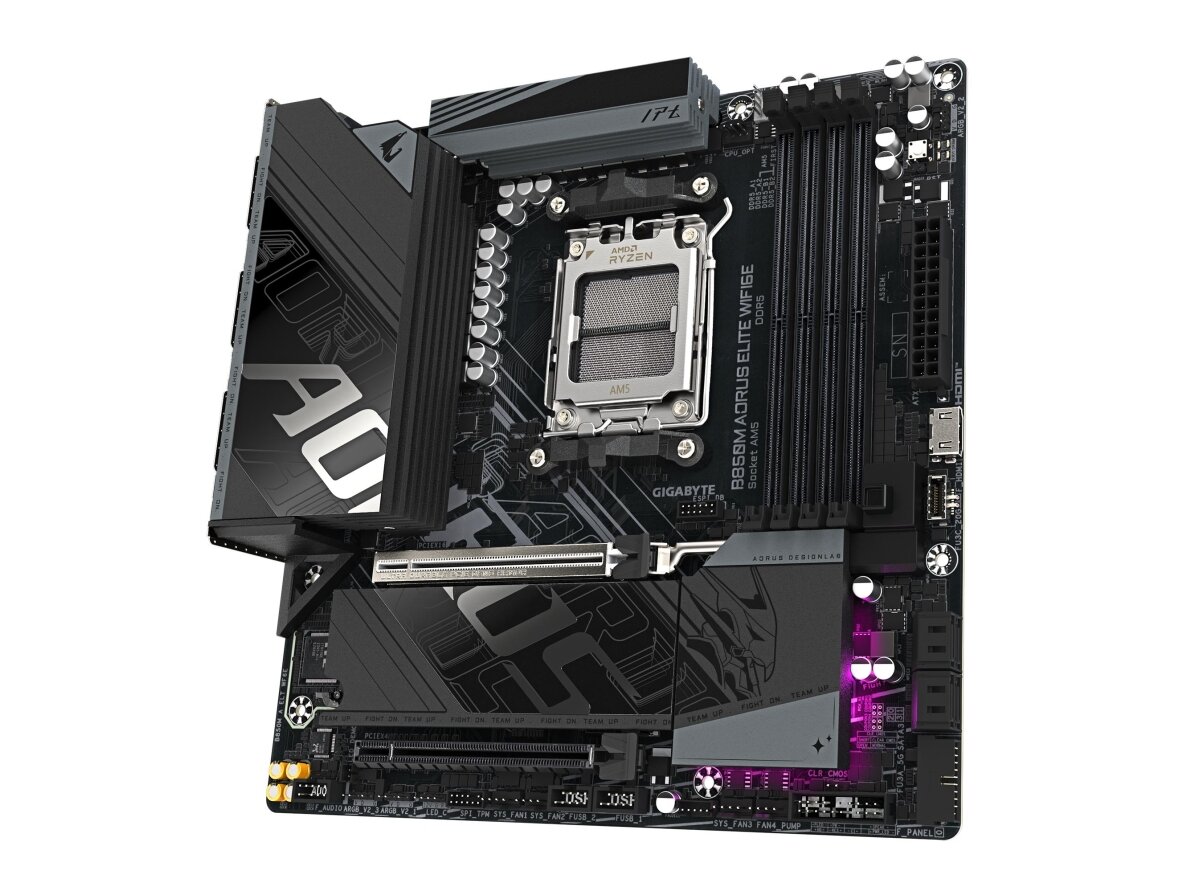

      MB AMD B850 SAM5 MATX/B850M A ELT WF6E 1.1 GIGABYTE 2

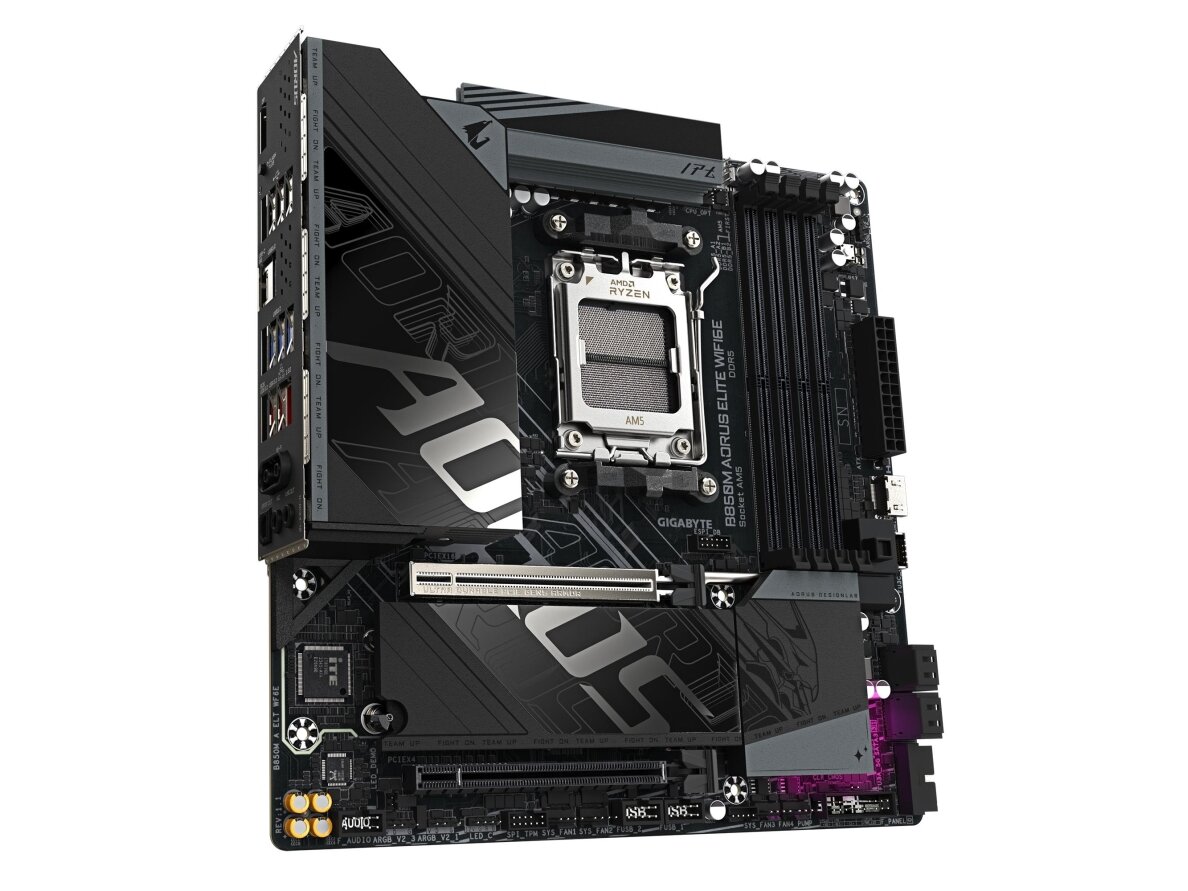

      MB AMD B850 SAM5 MATX/B850M A ELT WF6E 1.1 GIGABYTE 3

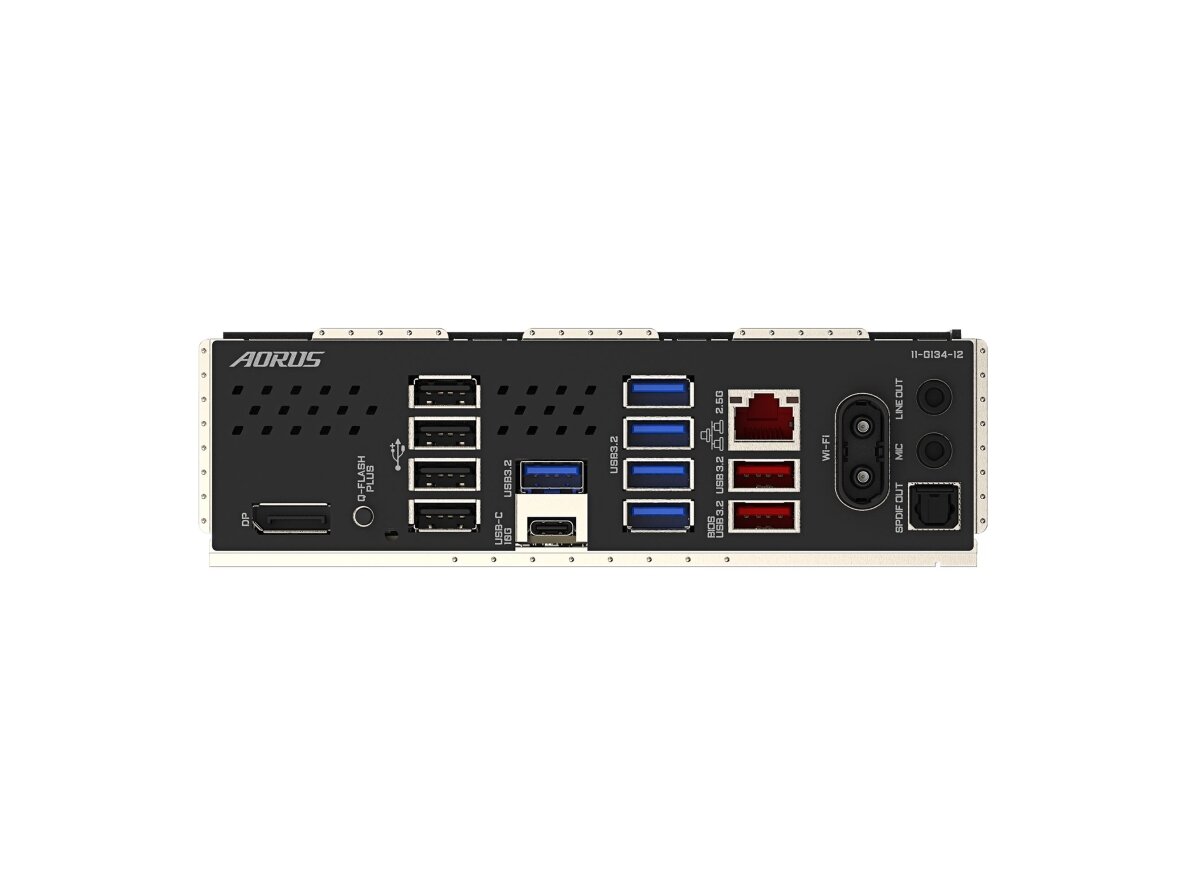

      MB AMD B850 SAM5 MATX/B850M A ELT WF6E 1.1 GIGABYTE 4

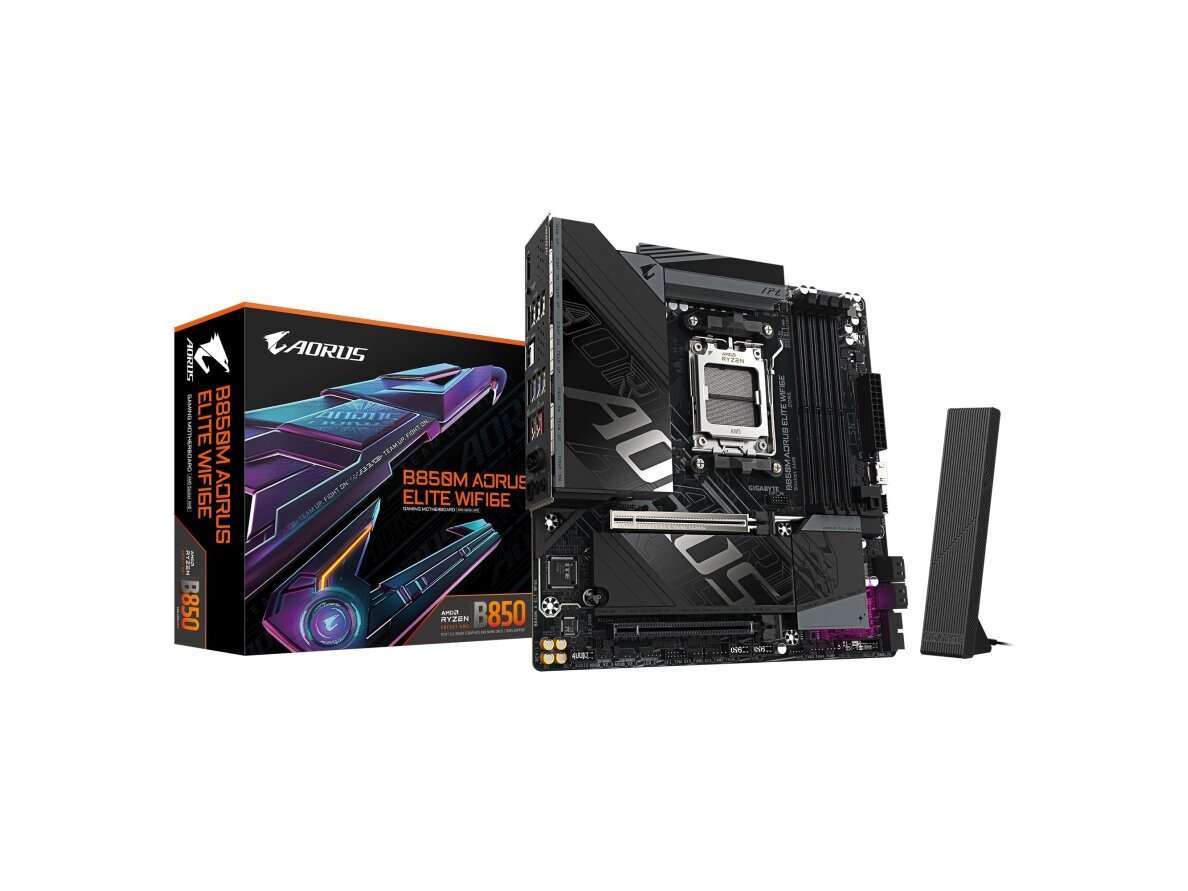

    MB AMD B850 SAM5 MATX/B850M A ELT WF6E 1.1 GIGABYTE

    Kodas: 1447470
    Pasiteirauti apie prekę
    Kaina 189.55 €
    Netinka kaina? Siūlyk savo!
    Preliminarus pristatymo terminas: 2 - 4 d. d.
    Šią prekę turime sandėlyje.
    Likutis: 19 vnt.
    Lizingo skaičiuoklės
    • artea
  • Savybės
    Gamintojas
    GIGABYTE
    Garantija
    36
    Battery weight
    3
    Bluetooth
    Yes
    Category Code
    MBA
    Units per Shipping Box
    8
    Unit Calculated Volume
    0.006549
    Product Net Weight
    0.7
    Unit Calculated Weight
    1.96
    Summary
    GIGABYTE B850M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), GIGABYTE B850M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
    Compatible processor series
    AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Processor manufacturer
    AMD
    Processor socket
    Socket AM5
    Supported processor sockets
    Socket AM5
    Maximum internal memory
    256
    Memory channels
    Dual-channel
    Memory slots type
    DIMM
    Number of memory slots
    4
    Supported memory clock speed (max)
    8200
    Supported memory clock speeds
    4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
    Supported memory types
    DDR5-SDRAM
    Number of HDDs supported
    4
    Number of storage drives supported
    6
    RAID levels
    0/1/10
    RAID support
    Yes
    Supported storage drive interfaces
    M.2,PCI Express 4.0,PCI Express 5.0,SATA III
    Supported storage drive types
    HDD & SSD
    DirectX version
    12.0
    ATX Power connector (24-pin)
    Yes
    CPU fan connector
    Yes
    Front panel audio connector
    Yes
    Front panel connector
    Yes
    Number of SATA III connectors
    4
    USB 2.0 connectors
    2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors
    1
    Ethernet LAN (RJ-45) ports
    1
    HDMI ports quantity
    1
    Headphone outputs
    1
    Line-in
    Yes
    USB 2.0 ports quantity
    4
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
    5
    Ethernet interface type
    2.5 Gigabit Ethernet
    Ethernet LAN
    Yes
    LAN controller
    Realtek RTL8125
    Wi-Fi
    Yes
    Audio chip
    Realtek ALC1220-VB
    Audio output channels
    7.1
    Component for
    PC
    Motherboard chipset
    AMD B850
    Motherboard chipset family
    AMD
    Motherboard form factor
    micro ATX
    Power source type
    ATX
    Windows operating systems supported
    Windows 10 x64/Windows 11 x64
    BIOS type
    UEFI AMI
    Bundled software
    Norton® Internet Security (OEM version) LAN bandwidth management software
    Unbuffered memory
    Yes
    Number of chassis fan connectors
    4
    PCI Express x16 (Gen 3.x) slots
    1
    Maximum resolution
    3840 x 2160
    Parallel processing technology support
    Not supported
    12V power connector
    Yes
    EPS power connector (8-pin)
    Yes
    TPM connector
    Yes
    HDMI version
    1.4
    PC health monitoring
    Fan/Temperature/Voltage/Water cooling
    Number of M.2 (M) slots
    2
    ACPI version
    5.0
    BIOS memory size
    256
    Clear CMOS jumper
    Yes
    Desktop Management Interface (DMI) version
    2.7
    System Management BIOS (SMBIOS) version
    2.7
    Battery technology
    Lithium-Manganese Dioxide (LiMnO2)
    Battery type
    CR2032
    Lithium weight per battery
    0.07
    Number of battery cells
    1
    Package depth
    268
    Package height
    68
    Package weight
    1972.5
    Package width
    270
    Products per shipping (inner) case
    1
    Batteries included
    Yes
    Warranty period
    3
    Cooling type
    Passive
    Product colour
    Black
    Weight
    1780
    RGB LED pin header
    Yes
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
    2
    Digital audio optical out
    1
    DisplayPort version
    1.4
    DisplayPorts quantity
    1
    Number of CPU fan connectors
    2
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
    1
    Maximum internal memory per slot
    64
    Number of EPS power connectors (8-pin)
    1
    Number of RGB LED pin headers
    4
    WiFi-AP antenna jack
    2
    Bluetooth version
    5.3
    Top Wi-Fi standard
    Wi-Fi 6E (802.11ax)
    Wi-Fi standards
    802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
    WLAN controller model
    Realtek RTL8852CE
    1st M.2 highest PCI Express generation
    5.0
    1st M.2 largest key size
    25110
    Antenna included
    Yes
    Screws included
    Yes
    2nd M.2 highest PCI Express generation
    4.0
    2nd M.2 largest key size
    22110
    Number of water pump connectors
    2
    S/PDIF out port
    Yes
    PCI Express x16 (Gen 5.x) slots
    1
    USB 3.2 Gen 2x2 connectors
    1
    ECC сompatibility
    Non-ECC
    Long Description
    GIGABYTE B850M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
    Bullet Points
    • X3D Turbo Mode : Unleash new era gaming performance
    • DDR5 OC up to 8200MT/s
    • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
    • Digital twin 12+2+2 phases VRM solution
    • Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
    • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
    • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
    • EZ-Latch Click : M.2 heatsinks with screwless design
    • Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
    • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
    • Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
    • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
    • Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
    • Extended Connectivity : HDMI,Displayport
    • PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
    Name
    MB AMD B850 SAM5 MATX/B850M A ELT WF6E 1.1 GIGABYTE
    Unit Width
    27
    Unit Depth
    27
    Unit Height
    7
