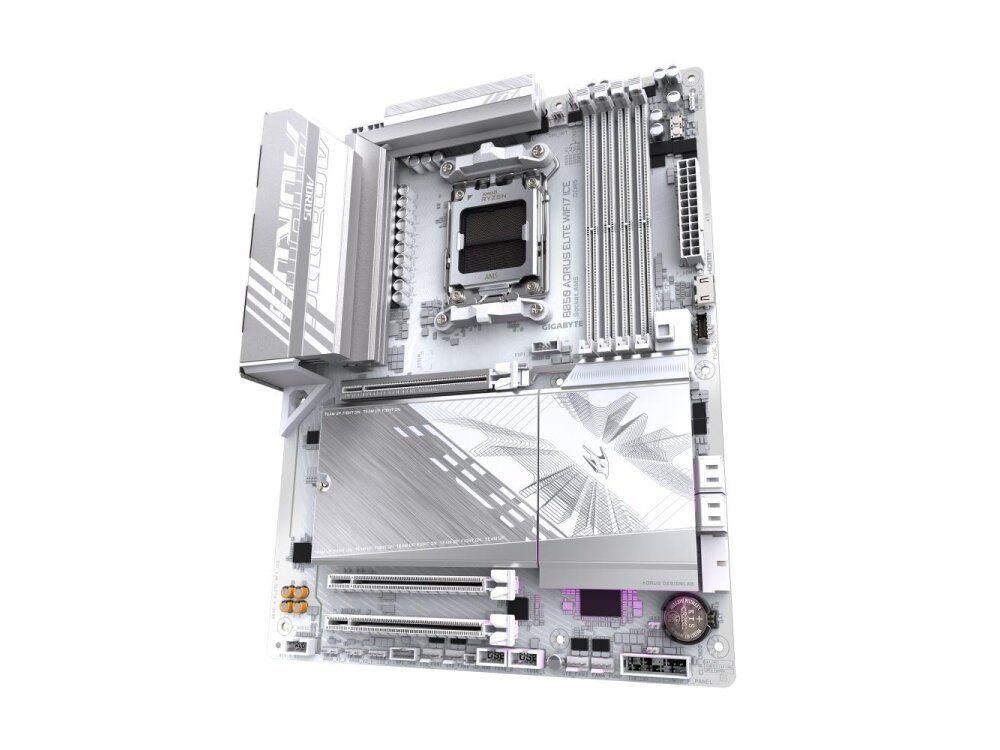

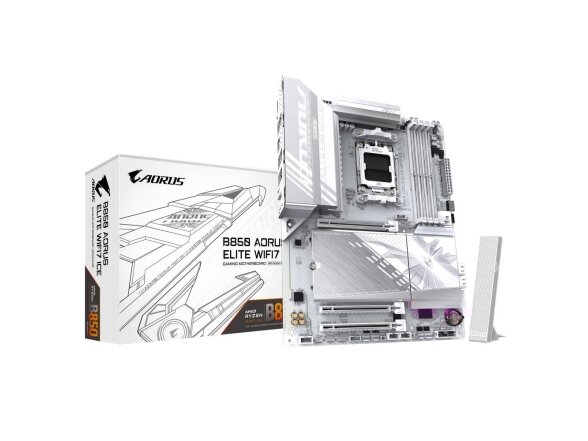

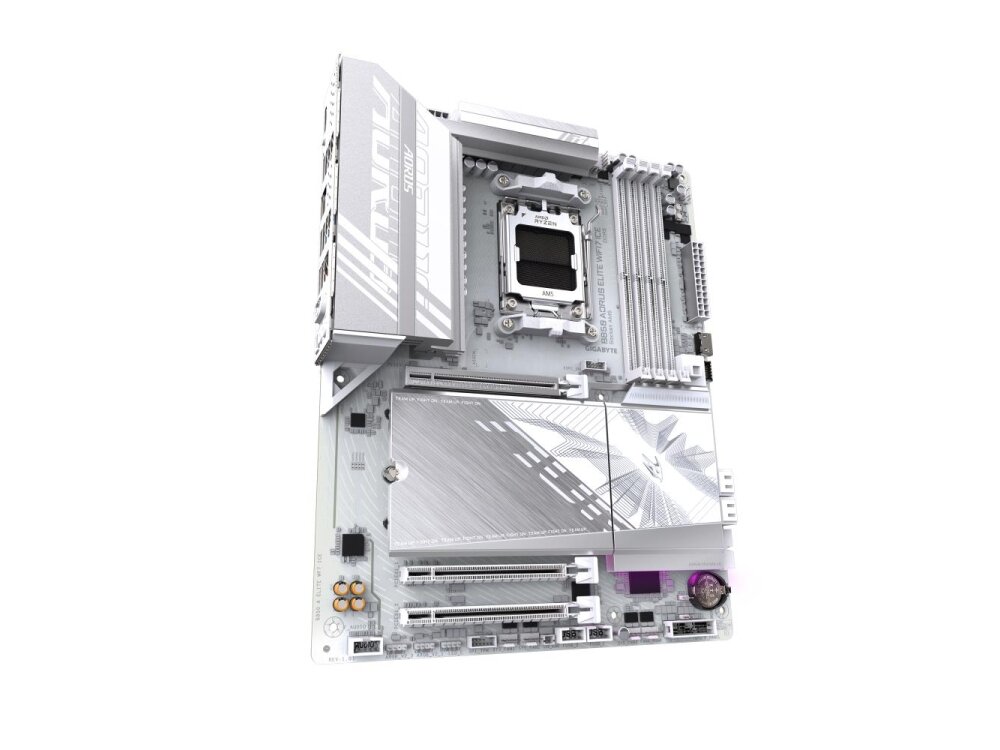

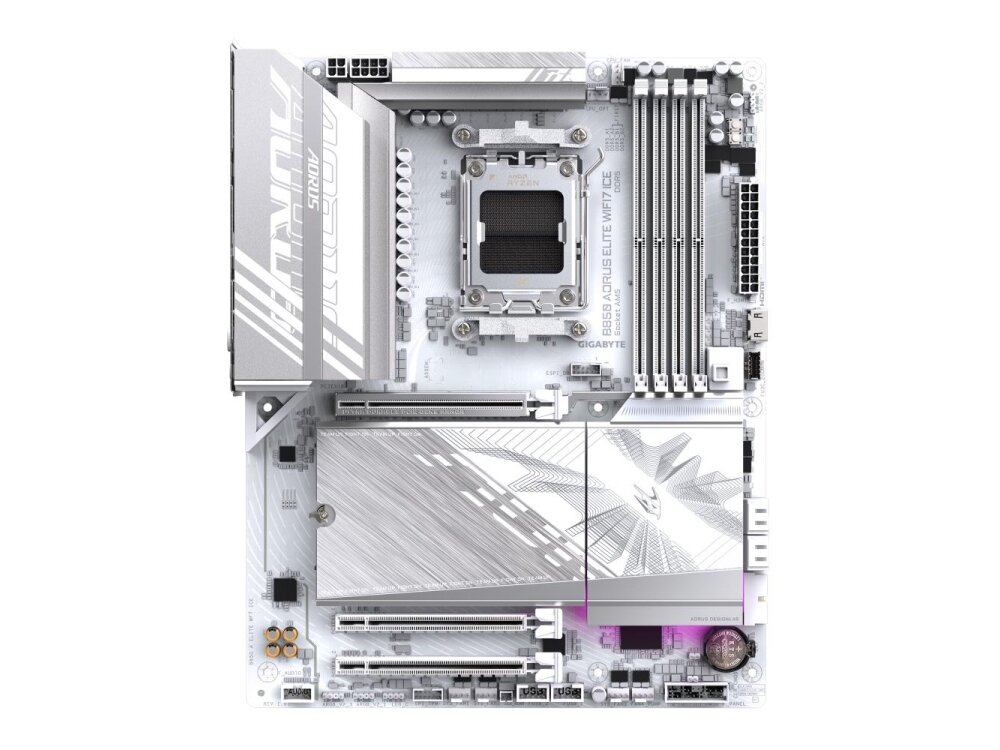

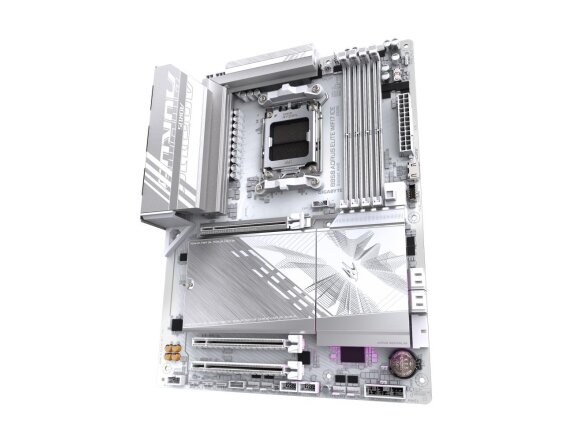

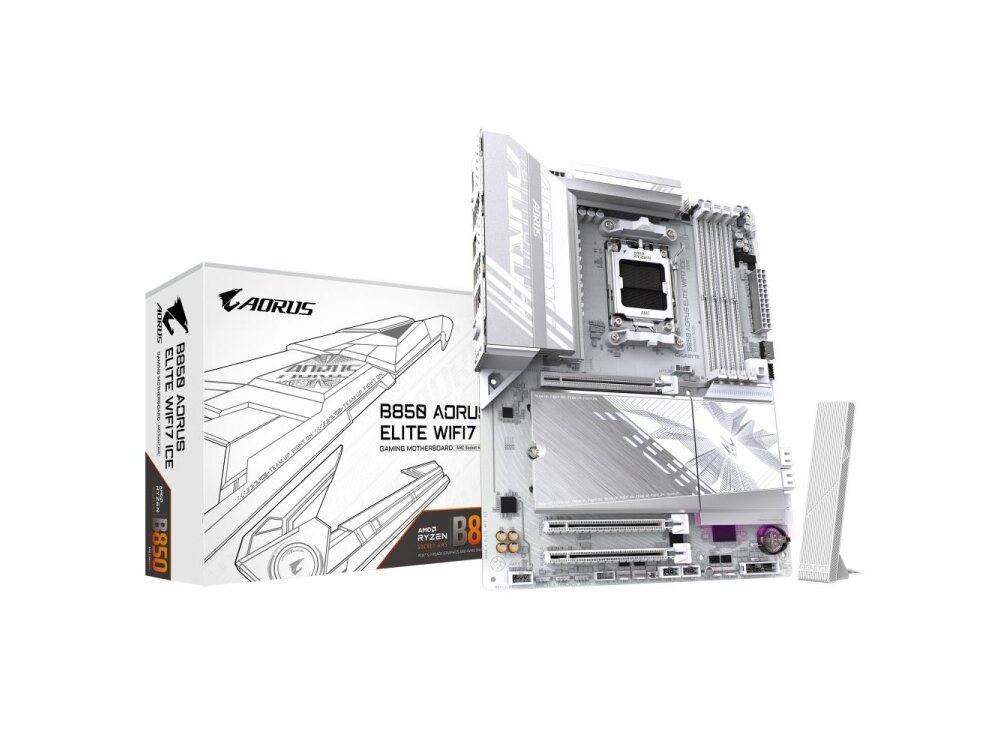

MB AMD B850 SAM5 ATX/B850 A ELITE WF7 ICE GIGABYTE
Kodas: 1441235Kaina 201.67 €Netinka kaina? Siūlyk savo!Preliminarus pristatymo terminas: 2 - 4 d. d.Šią prekę turime sandėlyje.Likutis: 78 vnt.Lizingo skaičiuoklės- artea
-
B850 AORUS ELITE WIFI7 ICE
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage:3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

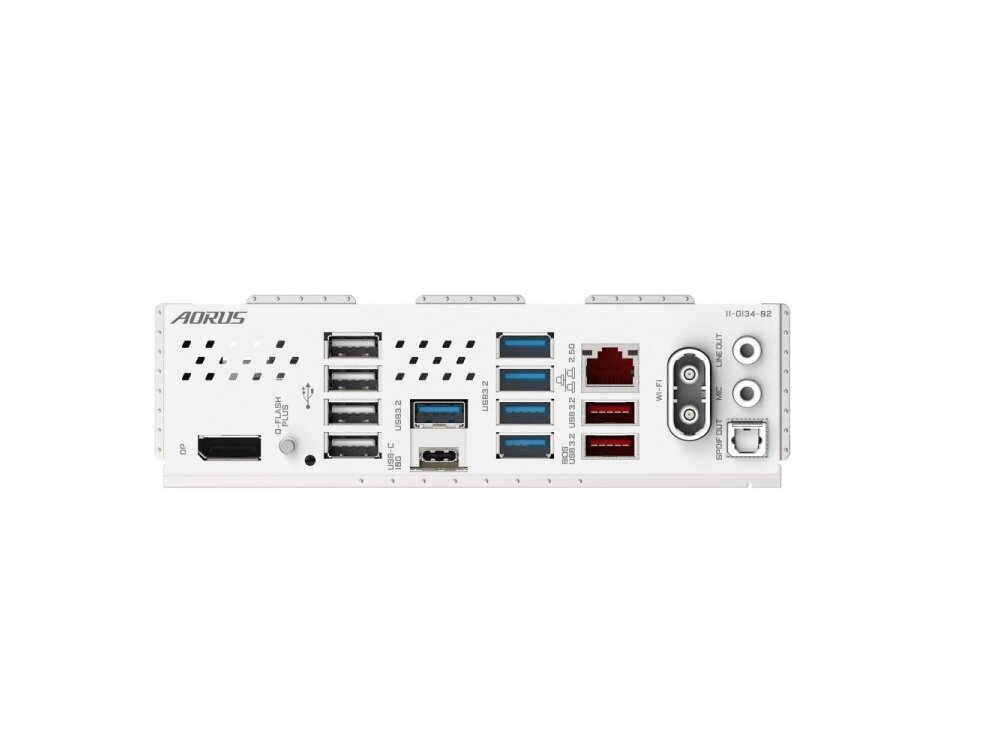

- Extended Connectivity:HDMI,Displayport
- PCIe UD Slot :PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Description: B850 AORUS ELITE WIFI7 ICE
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click:M.2 heatsinks with screwless design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage:3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity:HDMI,Displayport
- PCIe UD Slot :PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Vendor Homepage: www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-ICE-rev-1x
Model: B850 AORUS ELITE WIFI7 ICE
Full Description Line: AMD B850|SAM5|ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x|1xPCI-Express 4.0 8x|1xPCI-Express 5.0 16x|3xM.2|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM HeaderGamintojasGarantija36Battery weight3BluetoothYesCategory CodeMBAUnits per Shipping Box6Unit Calculated Volume0.01043Product Net Weight0.8Unit Calculated Weight2.52SummaryGIGABYTE B850 AORUS ELITE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 14+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 LAN, WIFI 7, USB 3.2 Gen 2x2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 SeriesProcessor manufacturerAMDProcessor socketSocket AM5Supported processor socketsSocket AM5Maximum internal memory256Memory channelsDual-channelMemory slots typeDIMMNumber of memory slots4Supported memory clock speed (max)8200Supported memory clock speeds4400/4800/5200/5600/5800/6000/6200/6600/6800/7000/7200/7400/7600/7900/7950/8000/8200Supported memory typesDDR5-SDRAMNumber of HDDs supported4Number of storage drives supported7RAID levels0/1/10RAID supportYesSupported storage drive interfacesM.2,SATA IIISupported storage drive typesHDD & SSDDirectX version12.0HDCPYesATX Power connector (24-pin)YesCPU fan connectorYesFront panel audio connectorYesFront panel connectorYesNumber of SATA III connectors4USB 2.0 connectors2USB 3.2 Gen 1 (3.1 Gen 1) connectors1Ethernet LAN (RJ-45) ports1HDMI ports quantity1Headphone outputs1Microphone inYesUSB 2.0 ports quantity4USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5Ethernet interface type2.5 Gigabit EthernetEthernet LANYesWi-FiYesAudio chipRealtek ALC897Audio output channels7.1Component forPCMotherboard chipsetAMD B850Motherboard chipset familyAMDMotherboard form factorATXPower source typeATXWindows operating systems supportedWindows 10 x64/Windows 11 x64BIOS typeUEFI AMIBundled softwareNorton Internet Security (OEM version) LAN bandwidth management softwareUnbuffered memoryYesNumber of chassis fan connectors3Maximum resolution4096 x 2160Parallel processing technology supportNot supported12V power connectorYesEPS power connector (8-pin)YesTPM connectorYesHDMI version1.4PC health monitoringFan/Temperature/Voltage/Water coolingNumber of M.2 (M) slots3ACPI version5.0BIOS memory size256Clear CMOS jumperYesDesktop Management Interface (DMI) version2.7System Management BIOS (SMBIOS) version2.7Battery technologyLithium-Manganese Dioxide (LiMnO2)Battery typeCR2032Country of originChinaLithium weight per battery0.07Number of battery cells1Package depth270Package height80Package weight2461Package width335Products per shipping (inner) case1Batteries includedYesWarranty period3Peripheral (Molex) power connectors (4-pin)1Product colourBrown/WhiteOn-board graphics cardNoWeight2160RGB LED pin headerYesClear CMOS buttonYesUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2Serial port headers1Total number of SATA connectors4DisplayPort version1.4DisplayPorts quantity1Number of CPU fan connectors2USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1Maximum internal memory per slot64Number of EPS power connectors (8-pin)1Number of RGB LED pin headers4WiFi-AP antenna jack2Bluetooth version5.4Top Wi-Fi standardWi-Fi 7 (802.11be)Wi-Fi standards802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)WLAN controller modelRealtek RTL8922AE1st M.2 highest PCI Express generation5.01st M.2 largest key size25110Antenna includedYesScrews includedYesPCI Express x16 (Gen 4.x) slots22nd M.2 highest PCI Express generation4.02nd M.2 largest key size22110Number of water pump connectors23rd M.2 highest PCI Express generation4.03rd M.2 largest key size22110USB 3.2 Gen 2x2 connectors1ECC сompatibilityNon-ECCNameMB AMD B850 SAM5 ATX/B850 A ELITE WF7 ICE GIGABYTEUnit Width27Unit Depth34Unit Height8.1Išbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą
