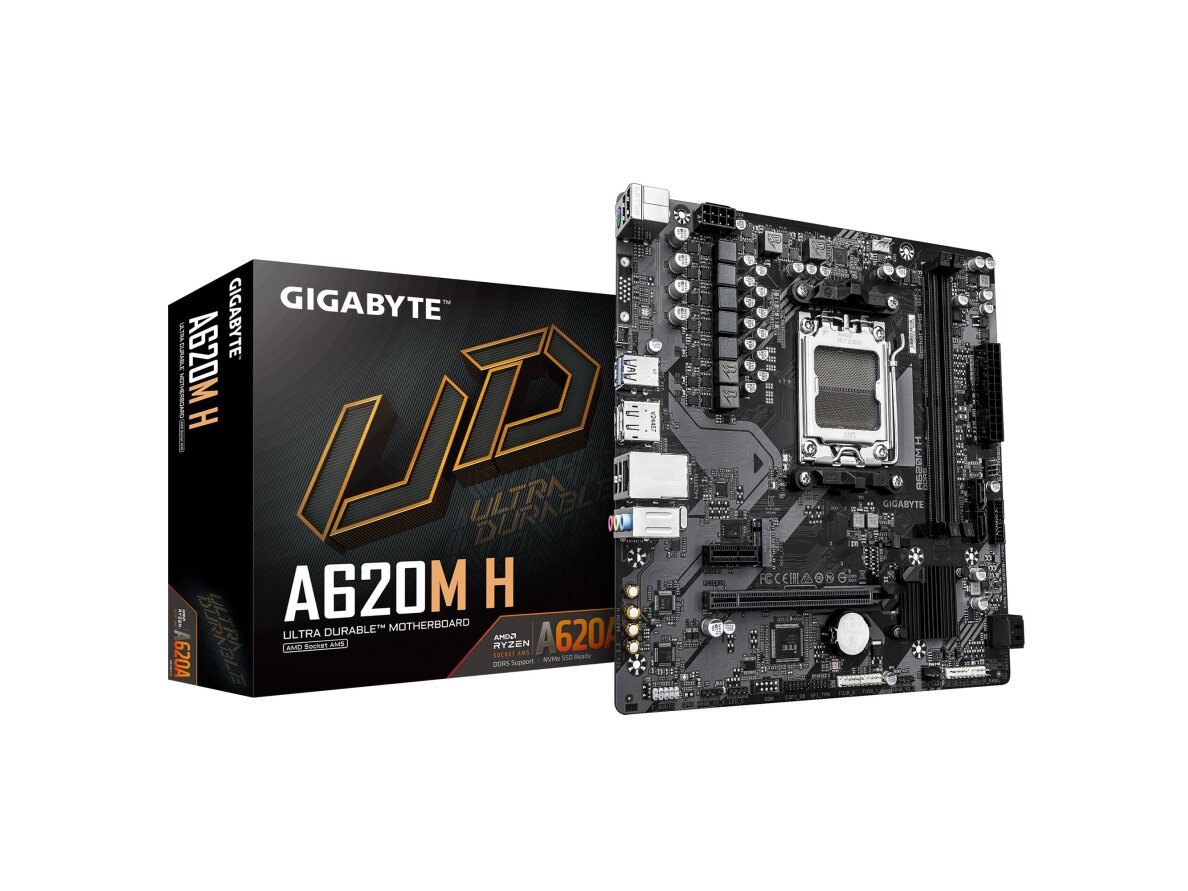

  •   MB AMD A620 SAM5 MATX/A620M H 2.2 GIGABYTE

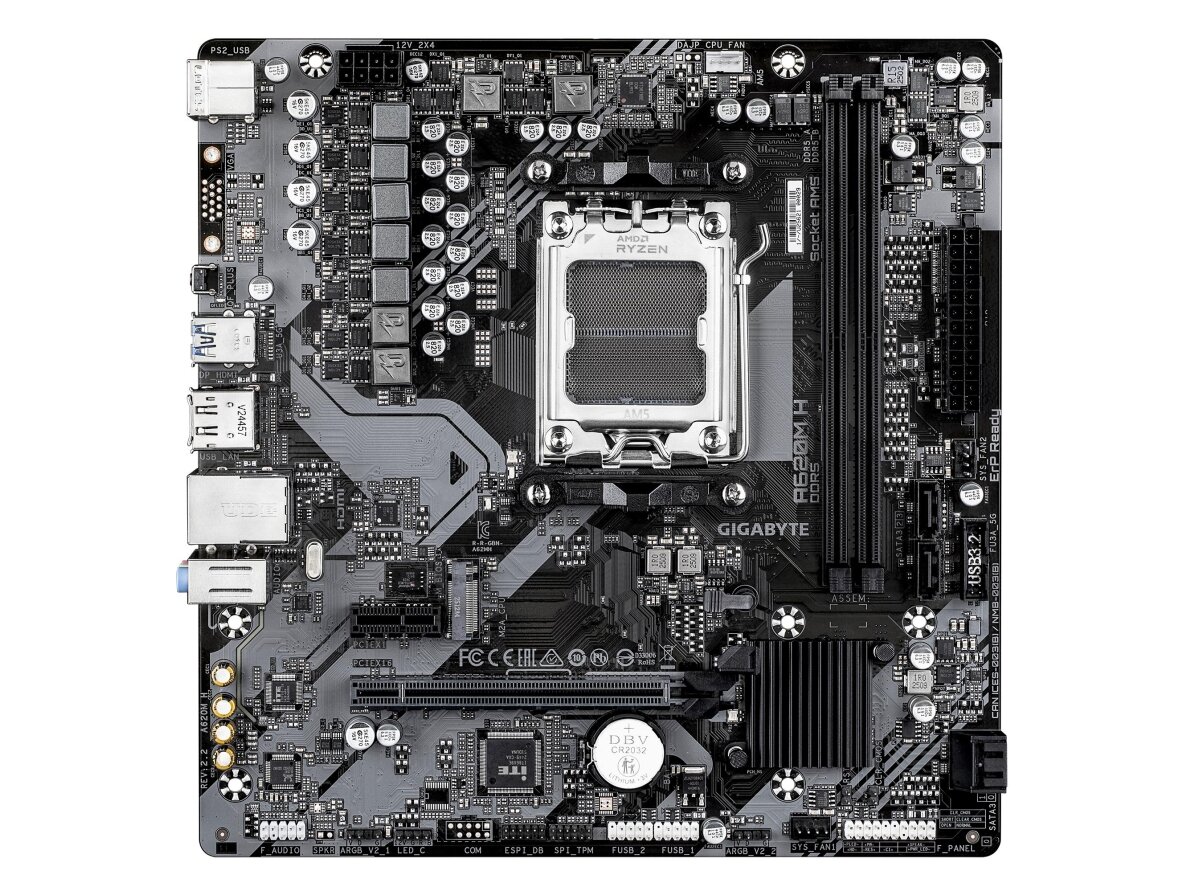

      MB AMD A620 SAM5 MATX/A620M H 2.2 GIGABYTE 1

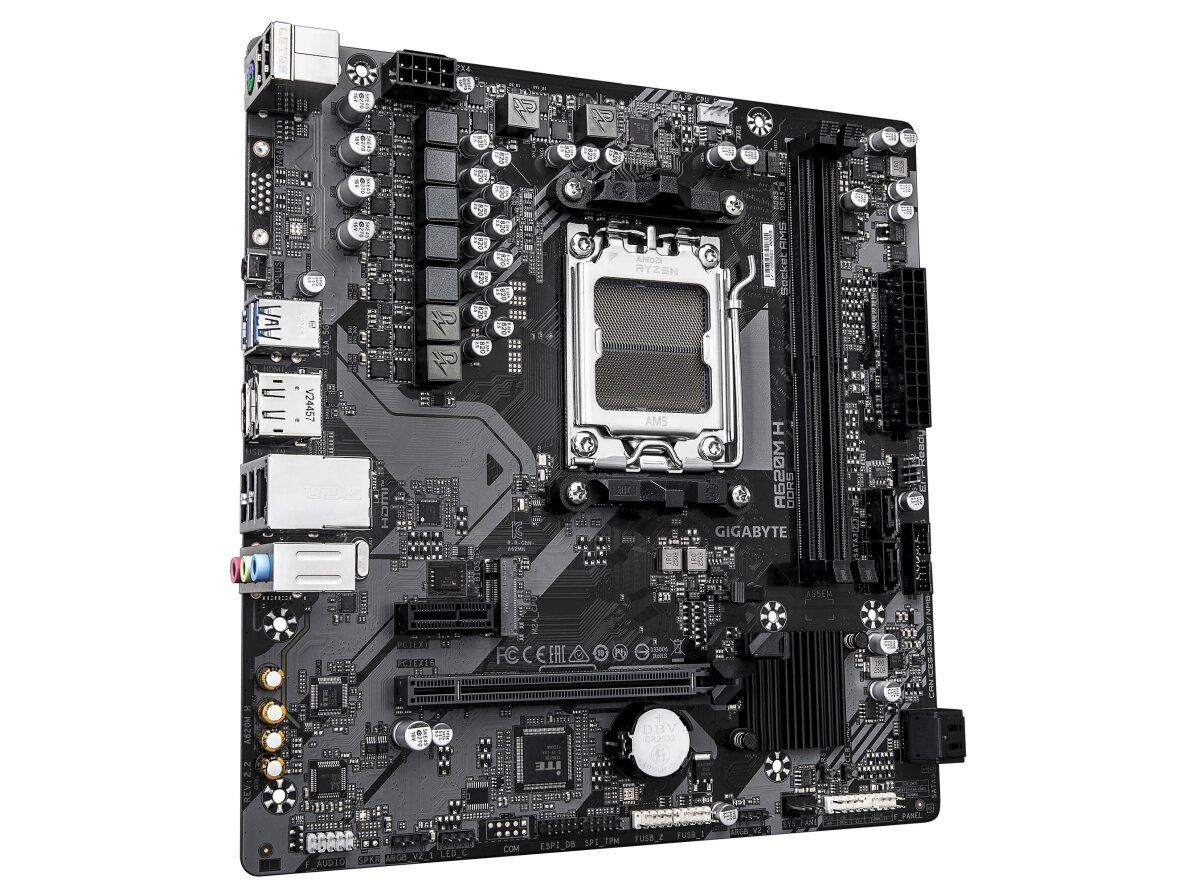

      MB AMD A620 SAM5 MATX/A620M H 2.2 GIGABYTE 2

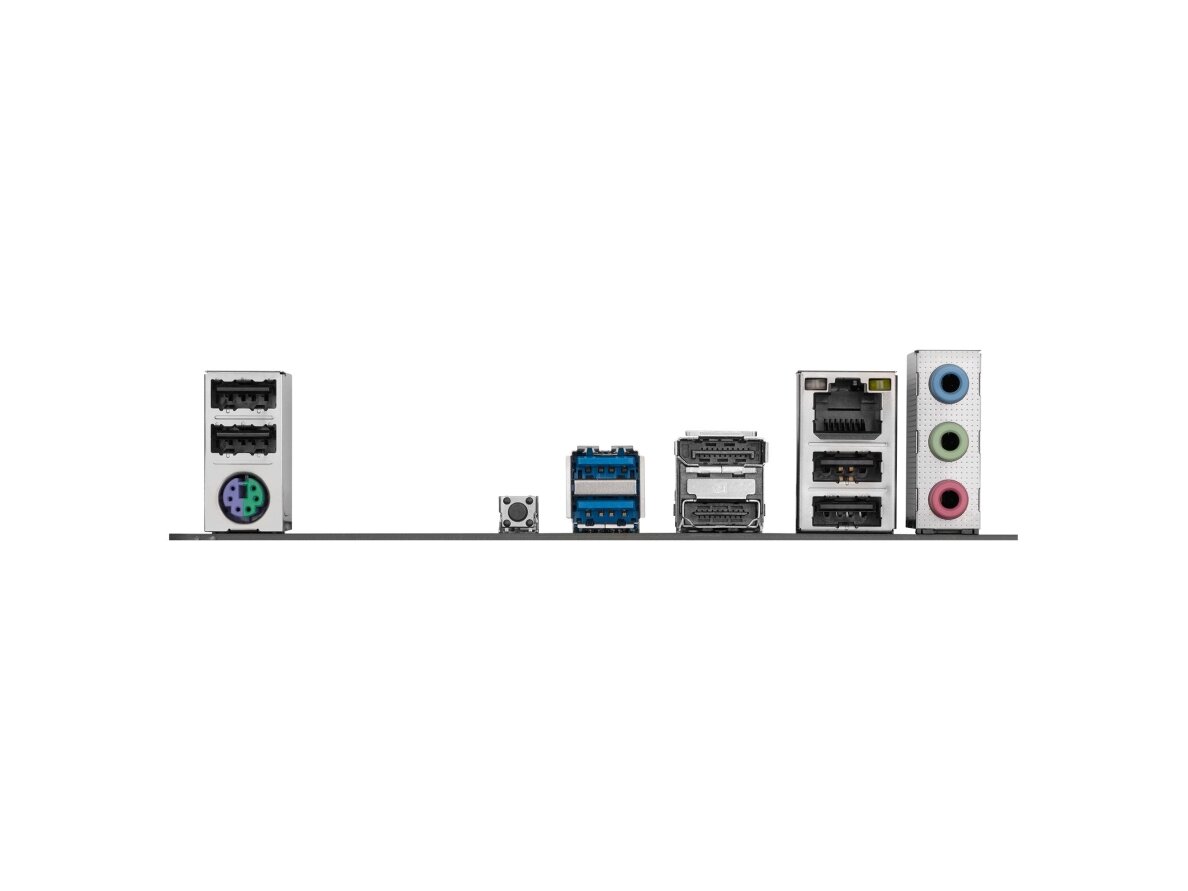

      MB AMD A620 SAM5 MATX/A620M H 2.2 GIGABYTE 3

    MB AMD A620 SAM5 MATX/A620M H 2.2 GIGABYTE

    Kodas: 1450137
    Pasiteirauti apie prekę
    Kaina 75.20 €
    Netinka kaina? Siūlyk savo!
    Preliminarus pristatymo terminas: 2 - 4 d. d.
    Šią prekę turime sandėlyje.
    Likutis: 11 vnt.
    Lizingo skaičiuoklės
    • artea
  • Savybės
    Gamintojas
    GIGABYTE
    Garantija
    36
    Battery weight
    3
    Category Code
    MBA
    Units per Shipping Box
    10
    Unit Calculated Volume
    0.004836
    Product Net Weight
    0.8
    Unit Calculated Weight
    0.925
    Summary
    GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C, GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
    Compatible processor series
    AMD Ryzen 7000 Series
    Processor manufacturer
    AMD
    Processor socket
    Socket AM5
    Supported processor sockets
    Socket AM5
    Maximum internal memory
    96
    Memory channels
    Dual-channel
    Memory slots type
    DIMM
    Number of memory slots
    2
    Supported memory clock speed (max)
    7200
    Supported memory clock speeds
    4400/4800/5200/5600/6000/6200/6400/6800/7200
    Supported memory module capacities
    12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
    Supported memory types
    DDR5-SDRAM
    Number of HDDs supported
    4
    Number of storage drives supported
    5
    RAID levels
    0/1/10
    RAID support
    Yes
    Supported storage drive interfaces
    M.2,SATA III
    Supported storage drive types
    HDD & SSD
    DirectX version
    12.0
    HDCP
    Yes
    ATX Power connector (24-pin)
    Yes
    CPU fan connector
    Yes
    Front panel audio connector
    Yes
    Front panel connector
    Yes
    Number of SATA III connectors
    4
    USB 2.0 connectors
    2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors
    1
    Ethernet LAN (RJ-45) ports
    1
    HDMI ports quantity
    1
    Headphone outputs
    3
    Microphone in
    Yes
    PS/2 ports quantity
    1
    USB 2.0 ports quantity
    4
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
    2
    Ethernet interface type
    Gigabit Ethernet
    Ethernet LAN
    Yes
    Wi-Fi
    No
    Audio output channels
    7.1
    Component for
    PC
    Motherboard chipset
    AMD A620
    Motherboard chipset family
    AMD
    Motherboard form factor
    micro ATX
    Windows operating systems supported
    Windows 10 x64/Windows 11 x64
    PCI Express x16 slots
    1
    BIOS type
    UEFI AMI
    Bundled software
    Norton Internet Security LAN bandwidth management software
    Unbuffered memory
    Yes
    Cables included
    SATA
    Maximum resolution
    4096 x 2160
    Parallel processing technology support
    Not supported
    12V power connector
    Yes
    EPS power connector (8-pin)
    Yes
    TPM connector
    Yes
    HDMI version
    2.1
    USB connector type
    USB Type-A/USB Type-C
    PC health monitoring
    Fan/Temperature/Voltage/Water cooling
    Number of M.2 (M) slots
    1
    PCI Express x1 slots
    1
    ACPI version
    5.0
    BIOS memory size
    256
    Clear CMOS jumper
    Yes
    Desktop Management Interface (DMI) version
    2.7
    System Management BIOS (SMBIOS) version
    2.7
    Battery technology
    Lithium-Manganese Dioxide (LiMnO2)
    Battery type
    CR2032
    Country of origin
    China
    Lithium weight per battery
    0.07
    Number of battery cells
    1
    Package depth
    265
    Package height
    54
    Package weight
    897
    Package width
    265
    Products per shipping (inner) case
    1
    Batteries included
    Yes
    Warranty period
    3
    Product colour
    Brown
    Maximum internal memory supported by processor
    96
    RGB LED pin header
    Yes
    Total number of SATA connectors
    4
    DisplayPort version
    1.4
    DisplayPorts quantity
    1
    ECC сompatibility
    Non-ECC
    Long Description
    GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
    Bullet Points
    • AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
    • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
    • Fast Networks：GbE LAN
    • Extended Connectivity：DP, HDMI
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
    Name
    MB AMD A620 SAM5 MATX/A620M H 2.2 GIGABYTE
    Unit Width
    26.5
    Unit Depth
    26.5
    Unit Height
    5.5
