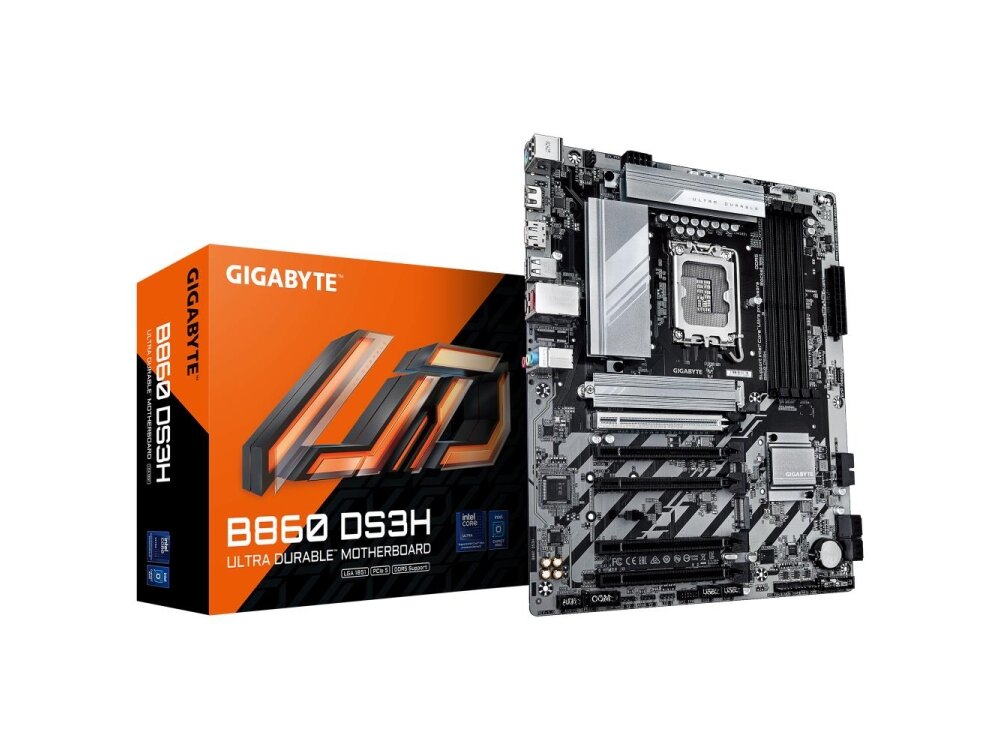

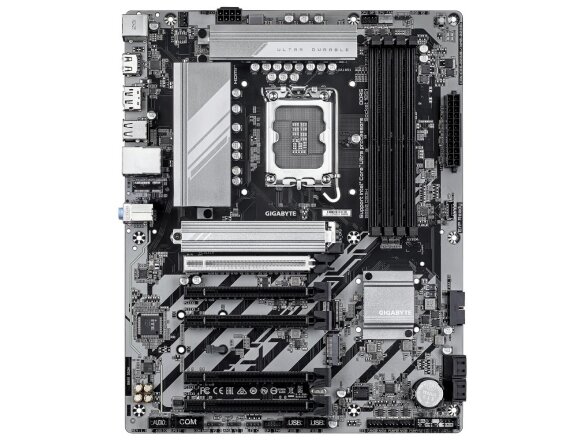

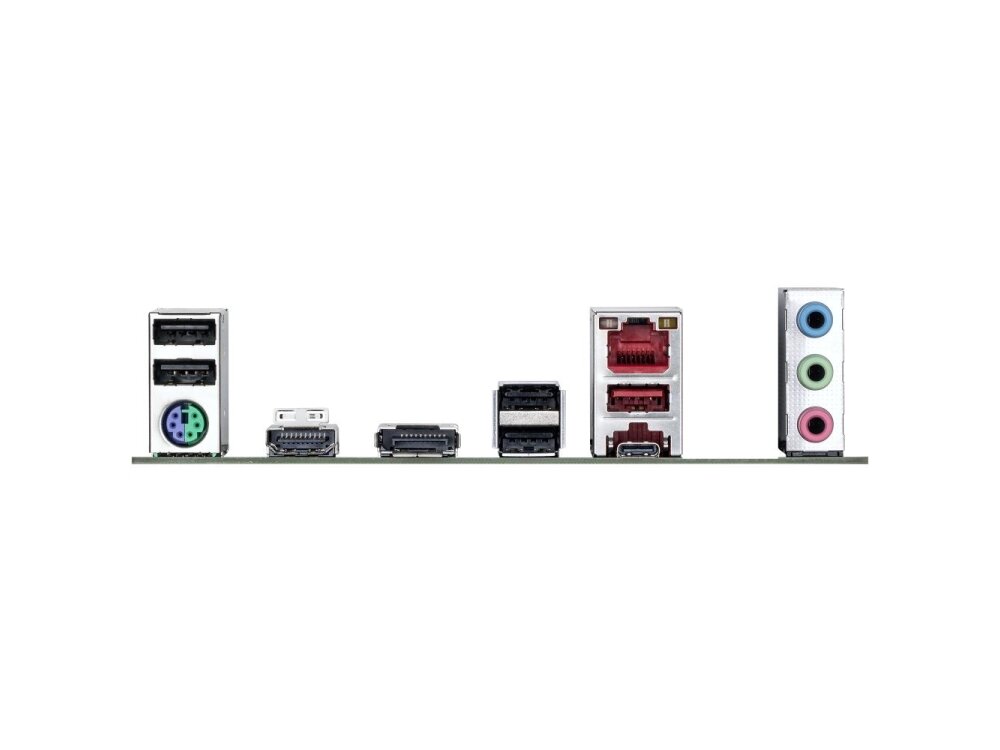

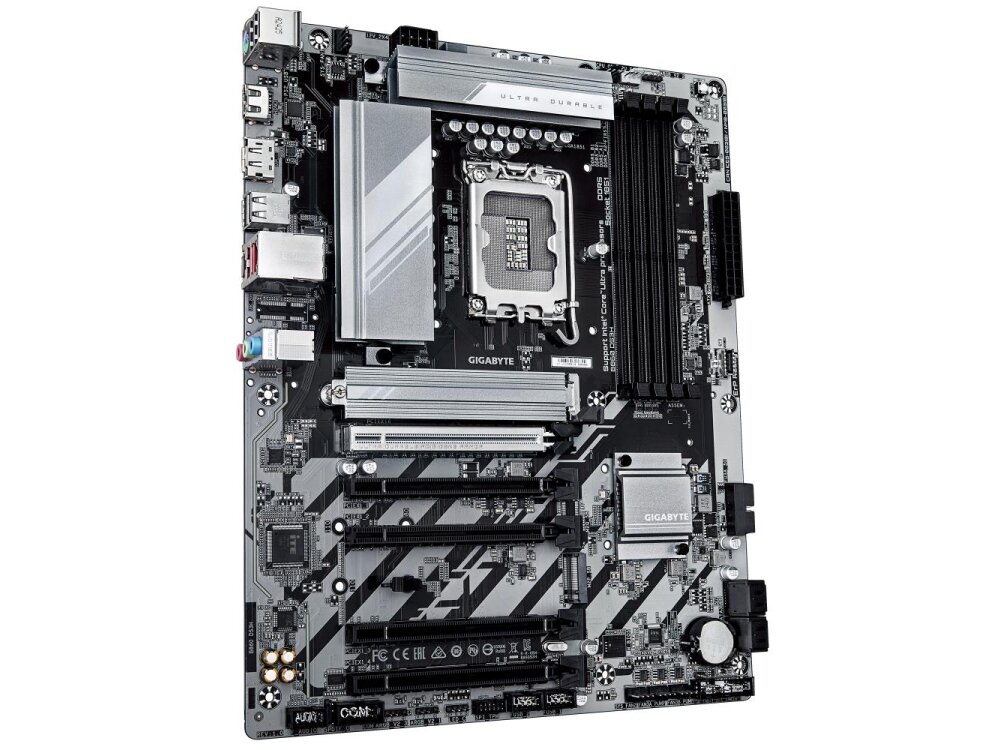

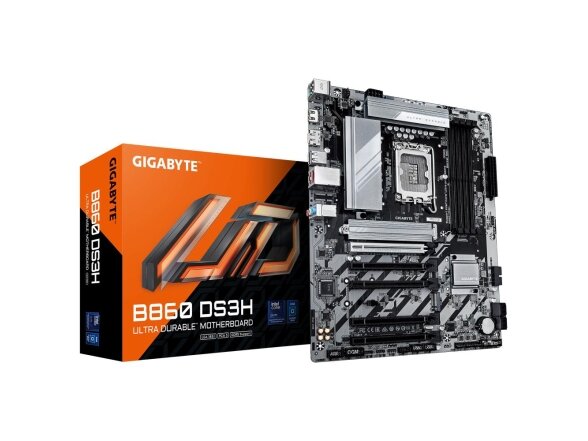

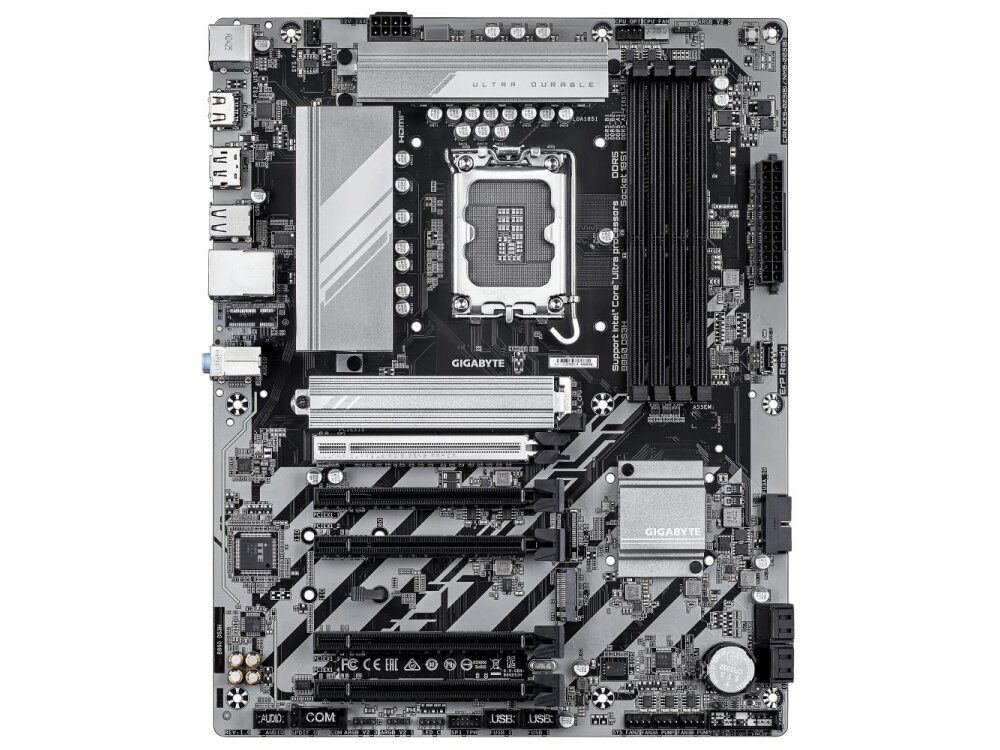

      Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B860DS3H
      Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B860DS3H 1
      Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B860DS3H 2
      Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B860DS3H 3

    Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B860DS3H

    Kodas: 1434431
    Pasiteirauti apie prekę
    Kaina 149.62 €
    Netinka kaina? Siūlyk savo!
    Preliminarus pristatymo terminas: 2 - 4 d. d.
    Šią prekę turime sandėlyje.
    Likutis: 7 vnt.
    Lizingo skaičiuoklės
    • artea
  • Savybės
    Gamintojas
    GIGABYTE
    Garantija
    36
    Category Code
    MBI
    Units per Shipping Box
    8
    Unit Calculated Volume
    0.01011
    Product Net Weight
    1
    Unit Calculated Weight
    1.58
    Summary
    GIGABYTE B860 DS3H Motherboard - Supports Intel Core Ultra CPUs, 8+1+2+2 phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
    Compatible processor series
    Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
    Processor manufacturer
    Intel
    Processor socket
    LGA 1851 (Socket V1)
    Maximum internal memory
    256
    Memory slots type
    DIMM
    Number of memory slots
    4
    Supported memory clock speeds
    5600/6400/9066
    Supported memory types
    DDR5-SDRAM
    Supported storage drive interfaces
    M.2,SATA III
    DirectX version
    12.0
    HDCP
    Yes
    ATX Power connector (24-pin)
    Yes
    CPU fan connector
    Yes
    EPS power connector (8-pin)
    Yes
    Front panel audio connector
    Yes
    Front panel connector
    Yes
    Number of SATA III connectors
    4
    USB 2.0 connectors
    2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors
    2
    Ethernet LAN (RJ-45) ports
    1
    HDMI ports quantity
    1
    Headphone outputs
    1
    PS/2 ports quantity
    1
    USB 2.0 ports quantity
    4
    Ethernet interface type
    2.5 Gigabit Ethernet
    Ethernet LAN
    Yes
    LAN controller
    Realtek RTL8125
    Wi-Fi
    No
    Audio chip
    Realtek ALC897
    Audio output channels
    7.1
    Component for
    PC
    Motherboard chipset
    Intel B860
    Motherboard chipset family
    Intel
    Motherboard form factor
    ATX
    Windows operating systems supported
    Windows 10 x64/Windows 11 x64
    Number of M.2 (M) slots
    2
    BIOS type
    UEFI AMI
    Clear CMOS jumper
    Yes
    Supported processor sockets
    LGA 1851
    Memory channels
    Dual-channel
    Supported memory clock speed (max)
    9066
    Unbuffered memory
    Yes
    Number of HDDs supported
    4
    Number of storage drives supported
    6
    RAID levels
    0/1/10/5
    RAID support
    Yes
    Supported storage drive types
    HDD & SSD
    PC health monitoring
    Fan/Temperature/Voltage/Water cooling
    Power source type
    ATX
    Product colour
    Dark brown
    ACPI version
    5.0
    BIOS memory size
    256
    Battery technology
    Lithium-Manganese Dioxide (LiMnO2)
    Battery type
    CR2032
    Battery weight
    3
    Country of origin
    China
    Lithium weight per battery
    0.07
    Number of battery cells
    1
    Package depth
    270
    Package height
    80
    Package width
    335
    Products per shipping (inner) case
    1
    Batteries included
    Yes
    Bundled software
    Norton® Internet Security (OEM version) LAN bandwidth management software
    Warranty period
    3
    Parallel processing technology support
    Not supported
    TPM connector
    Yes
    Line-in
    Yes
    Microphone in
    Yes
    PCI Express x16 (Gen 4.x) slots
    4
    Screws included
    Yes
    Maximum resolution
    4096 x 2160
    Number of chassis fan connectors
    4
    RGB LED pin header
    Yes
    Serial port headers
    1
    HDMI version
    2.1
    Desktop Management Interface (DMI) version
    2.7
    System Management BIOS (SMBIOS) version
    2.7
    Number of EPS power connectors (8-pin)
    1
    DisplayPort version
    2.1
    DisplayPorts quantity
    1
    Number of CPU fan connectors
    2
    Weight
    2000
    Cooling type
    Passive
    ECC сompatibility
    ECC & Non-ECC
    Number of RGB LED pin headers
    4
    1st M.2 highest PCI Express generation
    5.0
    1st M.2 largest key size
    25110
    S/PDIF out connector
    Yes
    Maximum internal memory per slot
    64
    2nd M.2 highest PCI Express generation
    4.0
    2nd M.2 largest key size
    25110
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
    1
    PCI Express x16 (Gen 5.x) slots
    1
    USB 3.2 Gen 2x2 Type-C ports quantity
    1
    Number of water pump connectors
    3
    Name
    MB B860 S1851 ATX/B860 DS3H GIGABYTE
    Unit Width
    8
    Unit Depth
    34
    Unit Height
    27
