Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870EAELITEWIFI71.2
Kodas: 1434222Kaina 296.10 €Netinka kaina? Siūlyk savo!Preliminarus pristatymo terminas: 2 - 4 d. d.Šią prekę turime sandėlyje.Likutis: 4 vnt.Lizingo skaičiuoklės- artea
-

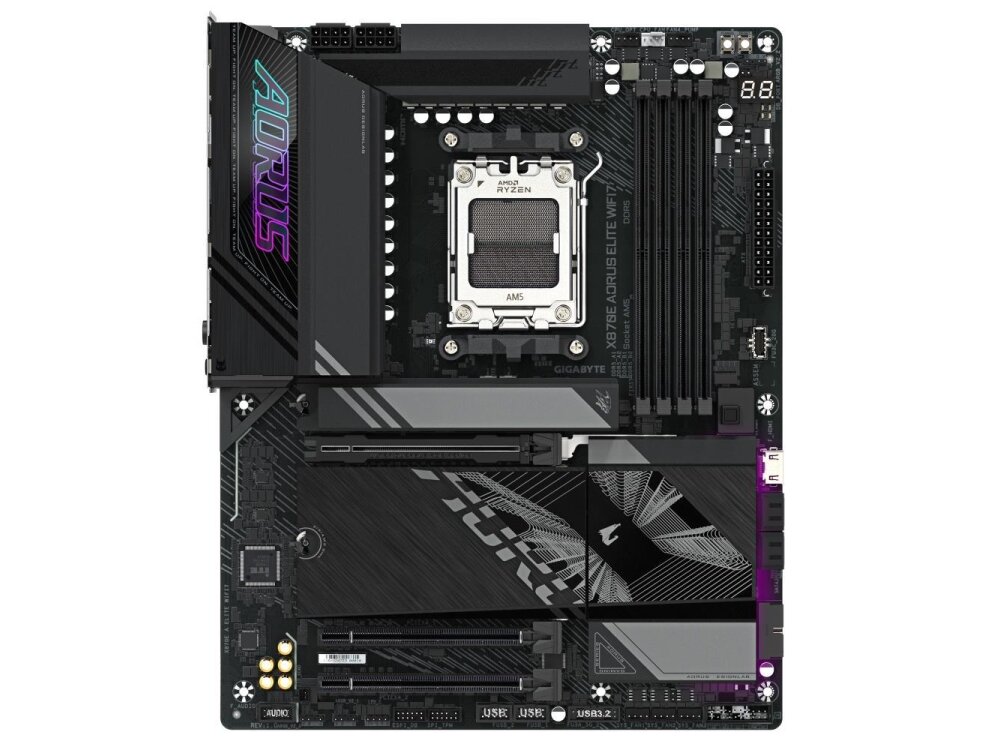

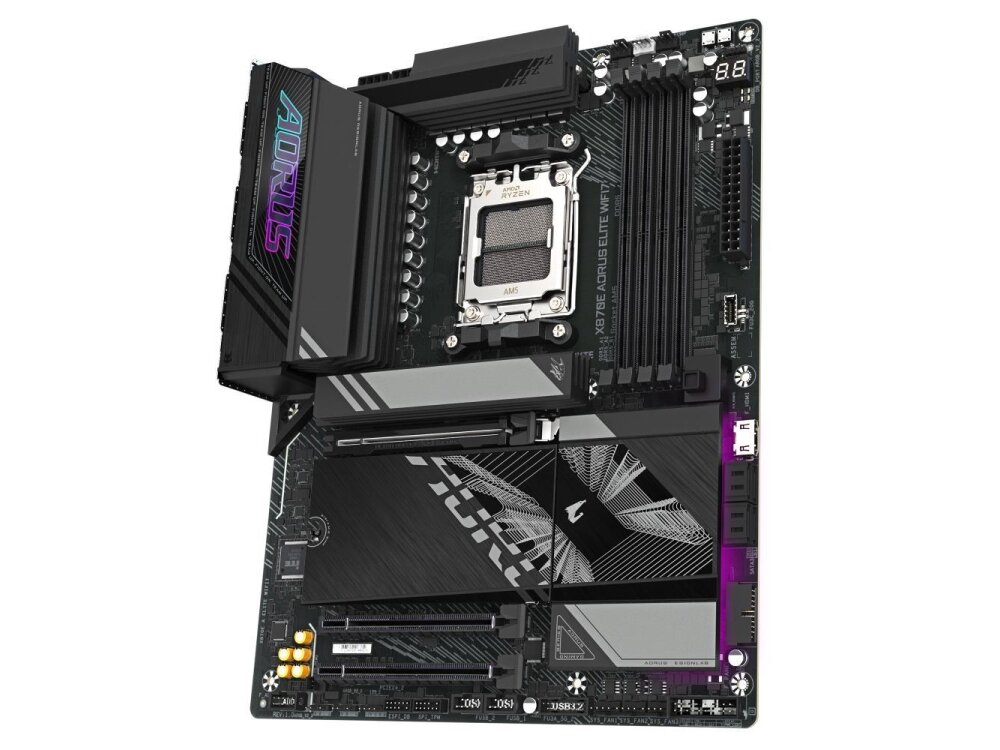

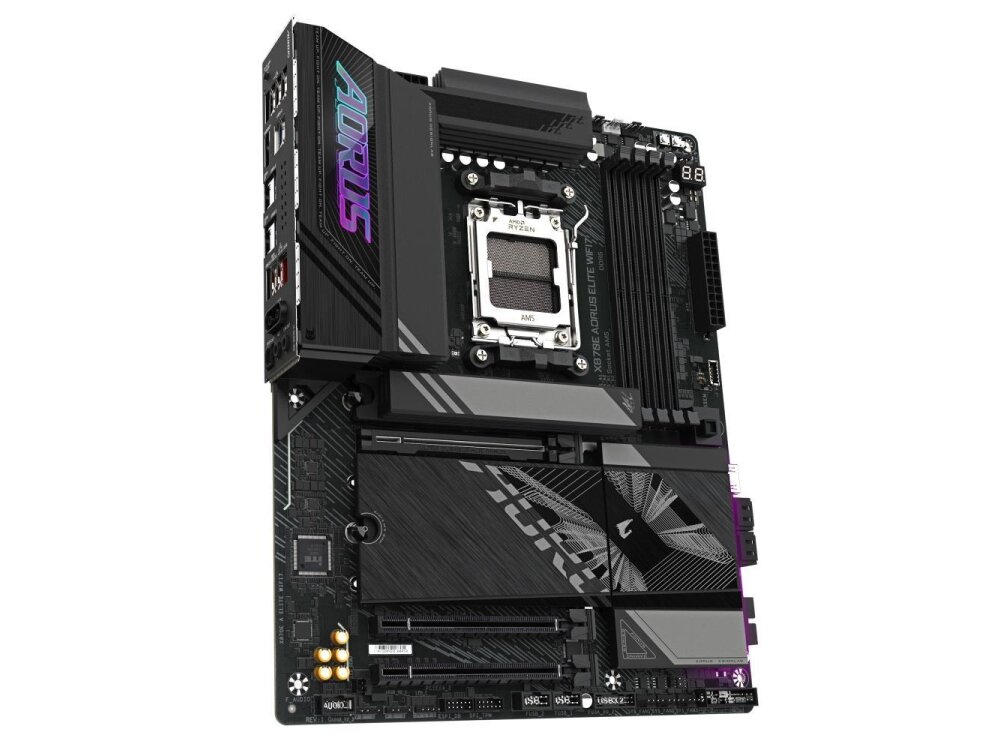

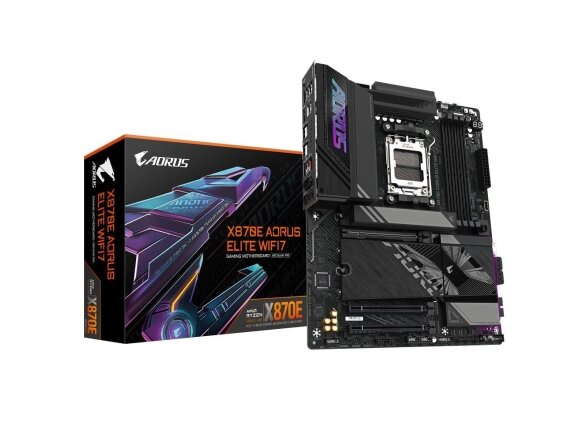

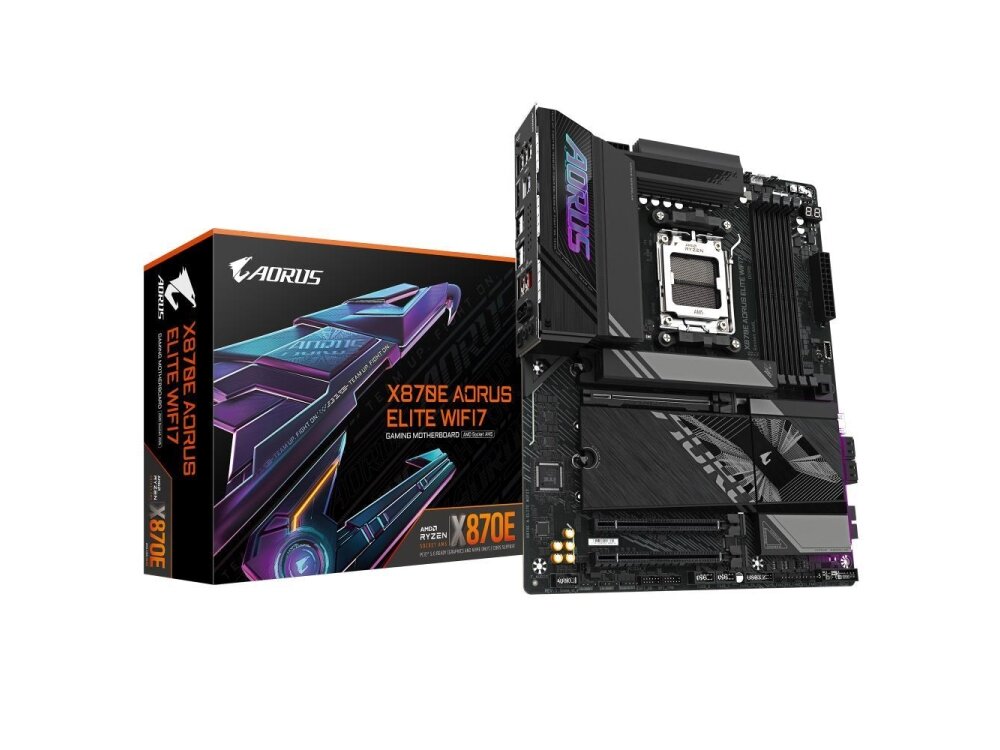

GIGABYTE X870E AORUS ELITE WIFI7
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin
16+2+2 phases VRM solution
Dual Channel DDR5
4*DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus
PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click
M.2 heatsinks with screwless design
Sensor Panel Link
Onboard video port for hassle-free in-chassis panel setup
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage
4*M.2 slots, including 3* PCIe 5.0 x4
Efficient Thermal
VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking
2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity

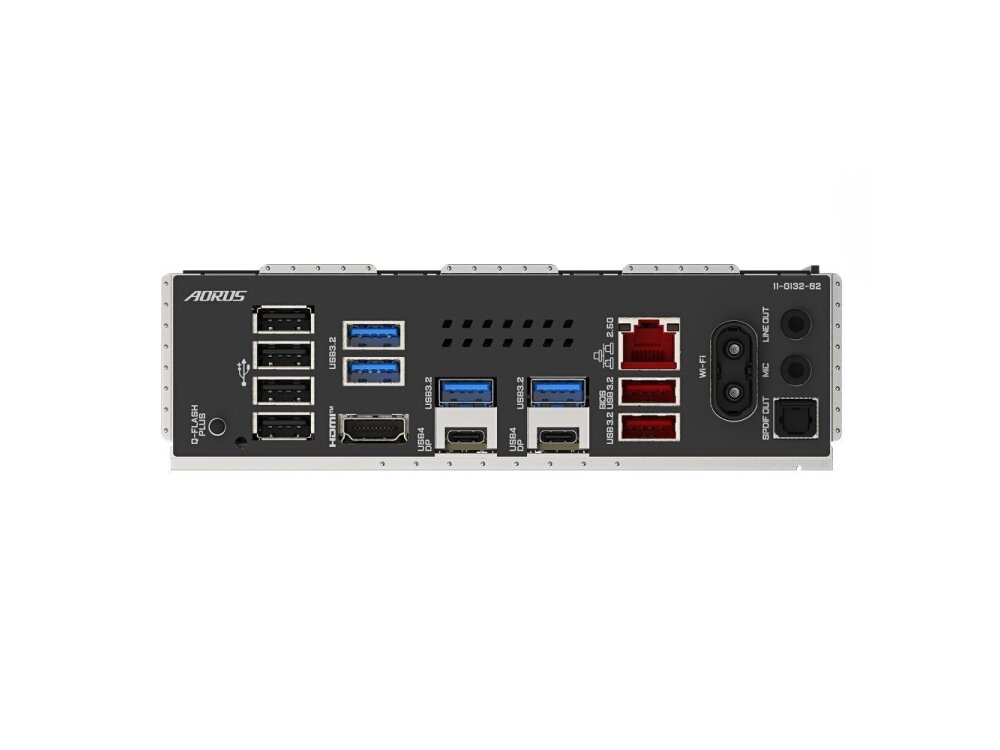

Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio
Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Ultra Durable PCIe Armor
The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X
PCIe 5.0 x16 slot with 10X strength for graphics card
Description: GIGABYTE X870E AORUS ELITE WIFI7
AMD Socket AM5
Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin
16+2+2 phases VRM solution
Dual Channel DDR5
4*DIMMs with AMD EXPO Memory Module Support
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus
PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click
M.2 heatsinks with screwless design
Sensor Panel Link
Onboard video port for hassle-free in-chassis panel setup
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage
4*M.2 slots, including 3* PCIe 5.0 x4
Efficient Thermal
VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking
2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity
Dual USB4 Type-C with DP-Alt, HDMI
Reliable Audio
Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
Ultra Durable PCIe Armor
The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X
PCIe 5.0 x16 slot with 10X strength for graphics card
Vendor Homepage: www.gigabyte.com/Motherboard/X870E-AORUS-ELITE-WIFI7#kf
Model: X870E AORUS ELITE WIFI7 1.2
Unit Brutto Volume: 0.01018
Unit Net Weight: 2.2
Unit Gross Weight: 2.54
Full Description Line: AMD X870E|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM HeaderGamintojasGarantija36Battery weight3BluetoothYesCategory CodeMBAUnits per Shipping Box5Unit Calculated Volume0.01065Product Net Weight2.2Unit Calculated Weight2.63SummaryGIGABYTE X870E AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMDCompatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 SeriesProcessor manufacturerAMDProcessor socketSocket AM5Supported processor socketsSocket AM5Maximum internal memory256Memory channelsDual-channelMemory slots typeDIMMNumber of memory slots4Supported memory clock speed (max)8200Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200Supported memory module capacities16GB/1GB/24GB/2GB/32GB/4GB/8GBSupported memory typesDDR5-SDRAMNumber of HDDs supported4Number of storage drives supported8RAID levels0/1/10RAID supportYesSupported storage drive interfacesM.2,SATA IIISupported storage drive typesHDD & SSDDirectX version12.0ATX Power connector (24-pin)YesCPU fan connectorYesFront panel audio connectorYesFront panel connectorYesNumber of SATA III connectors4USB 2.0 connectors2USB 3.2 Gen 1 (3.1 Gen 1) connectors2Ethernet LAN (RJ-45) ports1HDMI ports quantity1Headphone outputs1Microphone inYesUSB 2.0 ports quantity4USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4Ethernet interface type2.5 Gigabit EthernetEthernet LANYesLAN controllerRealtek RTL8125Wi-FiYesAudio chipRealtek ALC1220Audio output channels7.1Component forPCMotherboard chipsetAMD X870EMotherboard chipset familyAMDMotherboard form factorATXWindows operating systems supportedWindows 11 x64BIOS typeUEFI AMIBundled softwareNorton® Internet Security (OEM version) LAN bandwidth management softwareUnbuffered memoryYesNumber of chassis fan connectors4PCI Express x16 (Gen 3.x) slots1Parallel processing technology supportNot supportedEPS power connector (8-pin)YesTPM connectorYesHDMI version2.1PC health monitoringCPU/Fan/Temperature/VoltageNumber of M.2 (M) slots4ACPI version5.0BIOS memory size256Clear CMOS jumperYesDesktop Management Interface (DMI) version2.7System Management BIOS (SMBIOS) version2.7Battery technologyLithium-Manganese Dioxide (LiMnO2)Battery typeCR2032Country of originChinaLithium weight per battery0.07Number of battery cells1Package depth294Package height80Package weight2740Package width345Products per shipping (inner) case1Batteries includedYesWarranty period3Product colourBlackOn-board graphics cardNoWeight2400Maximum internal memory supported by processor256RGB LED pin headerYesClear CMOS buttonYesUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2DisplayPort version1.4Number of CPU fan connectors2Maximum internal memory per slot64Number of EPS power connectors (8-pin)2Number of RGB LED pin headers4WiFi-AP antenna jack2Bluetooth version5.4Top Wi-Fi standardWi-Fi 7 (802.11be)Wi-Fi standardsWi-Fi 7 (802.11be)WLAN controller modelMediaTek MT79251st M.2 highest PCI Express generation5.01st M.2 largest key size25110Antenna includedYesScrews includedYesPCI Express x16 (Gen 4.x) slots12nd M.2 highest PCI Express generation5.02nd M.2 largest key size22110Number of water pump connectors2PCI Express x4 slots2S/PDIF out portYesPCI Express x16 (Gen 5.x) slots13rd M.2 highest PCI Express generation5.03rd M.2 largest key size22110USB 3.2 Gen 2x2 connectors14th M.2 highest PCI Express generation4.04th M.2 largest key size22110USB4 Gen 2x2 ports quantity2ECC сompatibilityNon-ECCLong DescriptionGIGABYTE X870E AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMDBullet Points- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with DrMOS
- Dual Channel DDR5：4DIMMs with AMD EXPO & Intel XMP Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- M.2 Gen5 with EZ-Latch Plus
- Efficient Overall Thermal: Fully Covered MOSFET Heatsinks
- Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna 2*USB-C DP
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
NameMB AMD X870E SAM5 ATX/X870E A ELITE WIFI7 GIGABYTEUnit Width27.2Unit Depth8.2Unit Height33.4Išbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą
