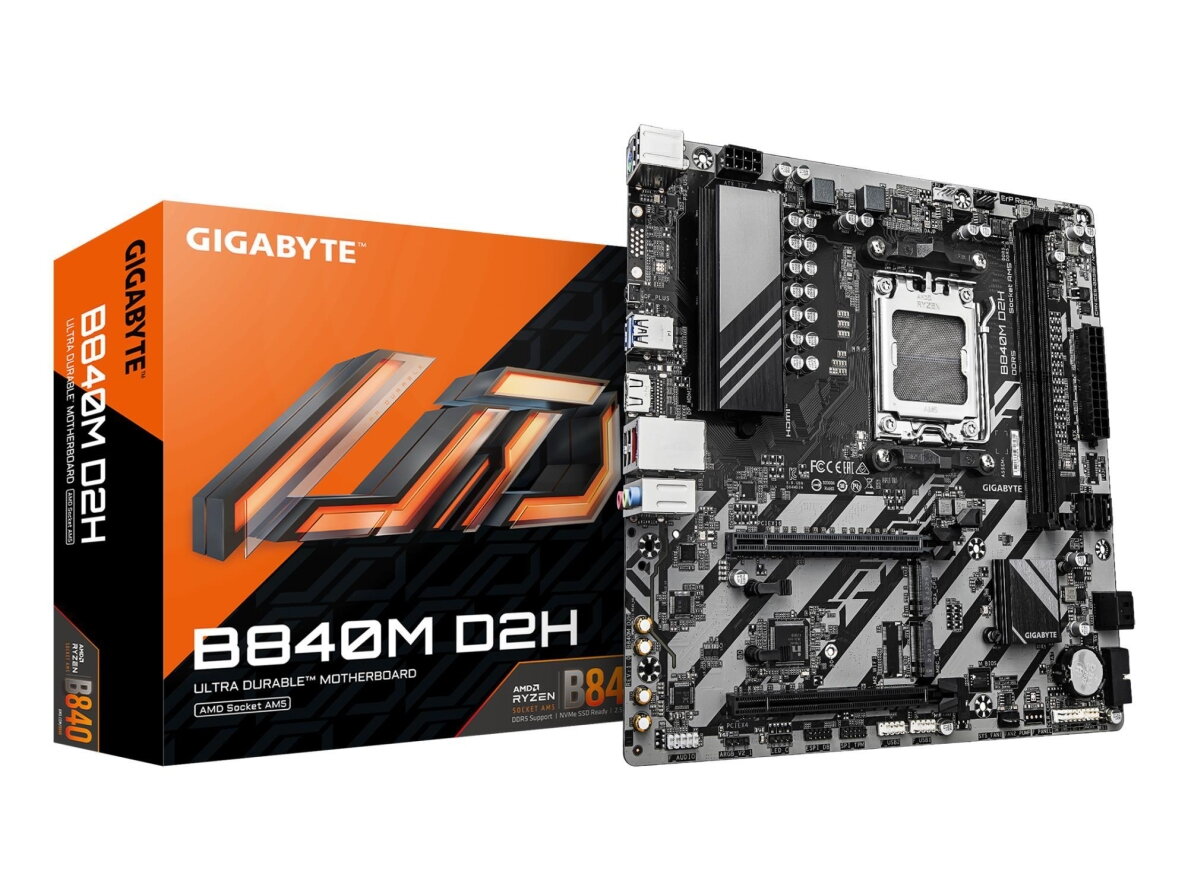

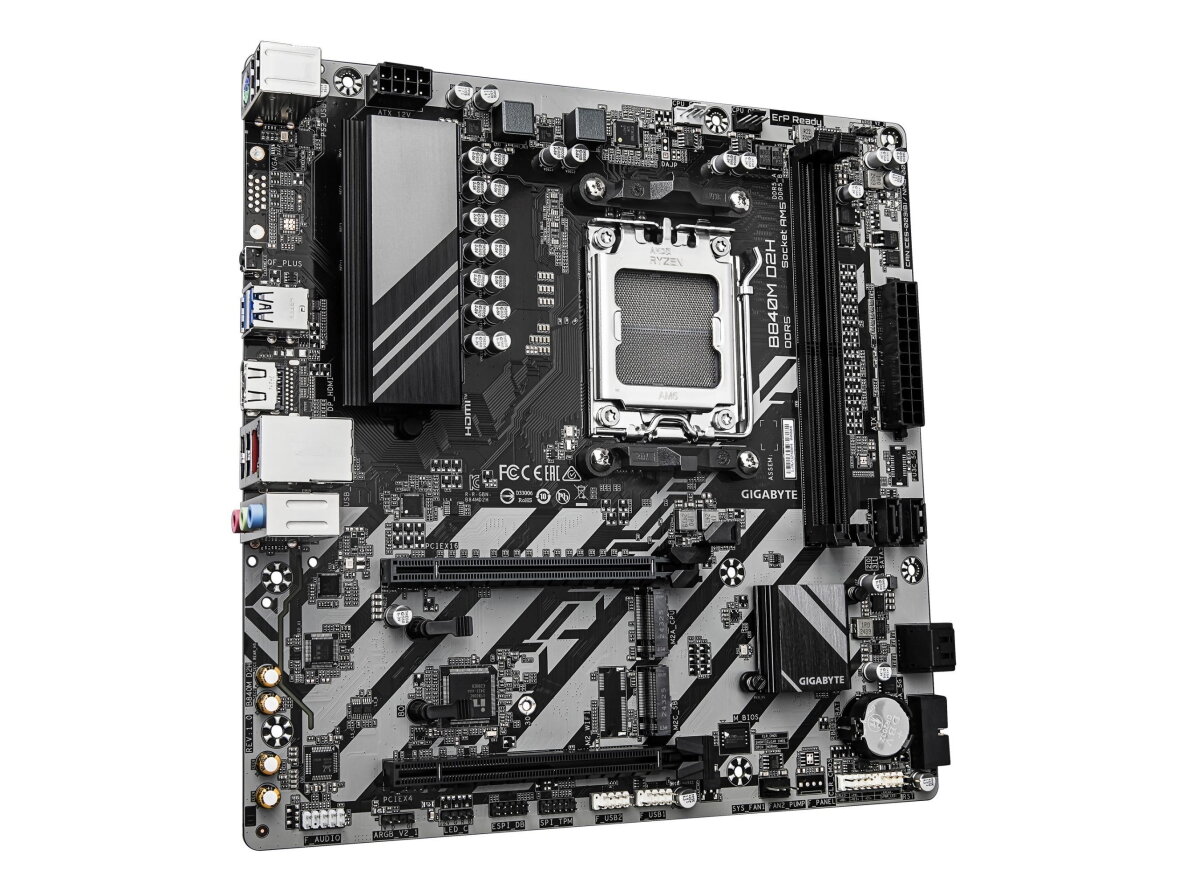

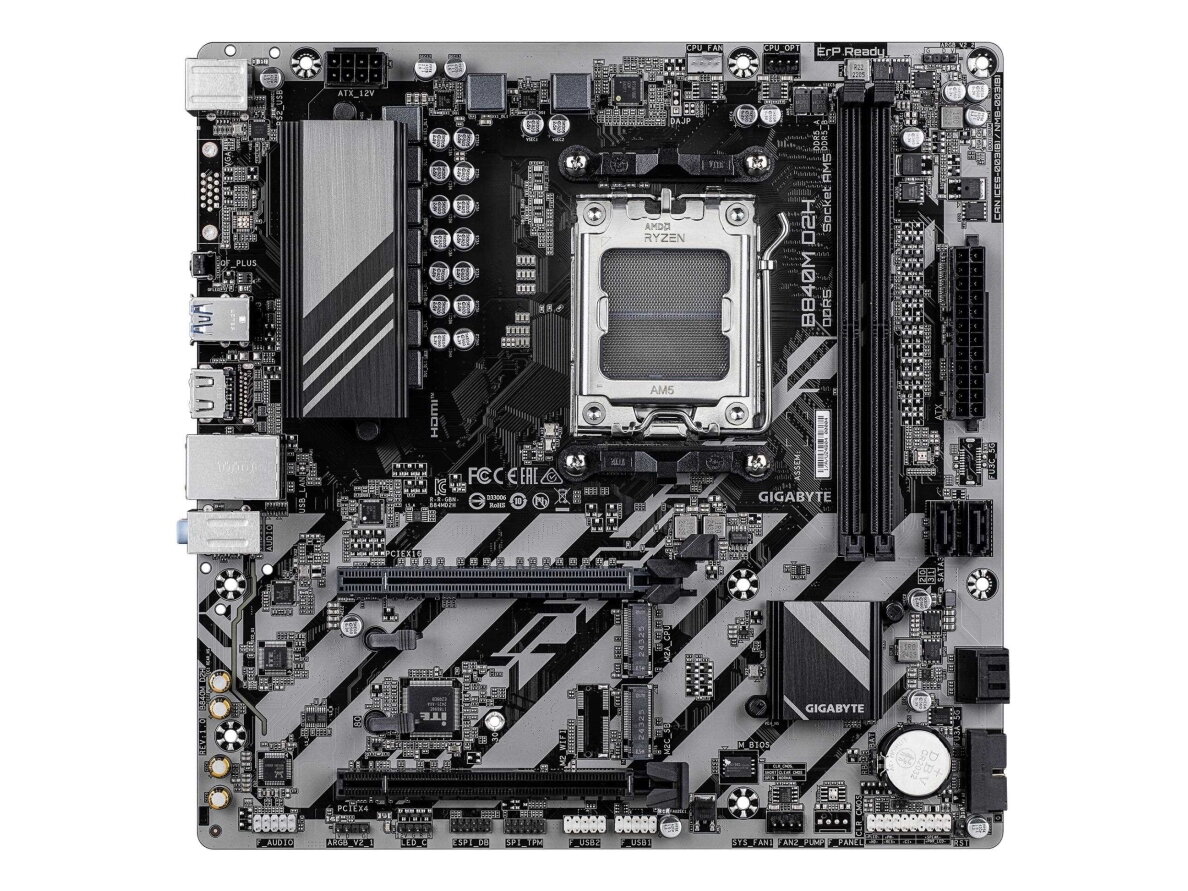

Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840M D2H (Rev. 1.1)|B840MD2H1.1
Kodas: 1466801Kaina 102.01 €Netinka kaina? Siūlyk savo!Preliminarus pristatymo terminas: 2 - 4 d. d.Šią prekę turime sandėlyje.Likutis: 10 vnt.Lizingo skaičiuoklės- artea
-
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Description:Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Vendor Homepage: www.gigabyte.com/Motherboard/B840M-D2H-rev-10-11
Unit Box Height: 0.058
Unit Box Length: 0.265
Unit Box Width: 0.265
Depth: 244
Height: 35
Width: 244
Shipping Box Depth: 57.5
Shipping Box Height: 29
Shipping Box Weight: 10.3500003815
Shipping Box Width: 28
Model: B840M D2H (Rev. 1.1)GamintojasGarantija36BatteryLithium batteryBattery weight3Category CodeMBAUnits per Shipping Box10Unit Calculated Volume0.004669Product Net Weight0.8Unit Calculated Weight1.04SummaryGIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125Compatible processor seriesAMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 SeriesProcessor manufacturerAMDProcessor socketSocket AM5Supported processor socketsSocket AM5Maximum internal memory128Memory channelsDual-channelMemory slots typeDIMMNumber of memory slots2Supported memory clock speed (max)7600Supported memory clock speeds4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600Supported memory typesDDR5-SDRAMNumber of HDDs supported4Number of storage drives supported6RAID levels0/1/10RAID supportYesSupported storage drive interfacesM.2,PCI Express 4.0,SATA IIISupported storage drive typesHDD & SSDDirectX version12.0HDCPYesATX Power connector (24-pin)YesCPU fan connectorYesFront panel audio connectorYesFront panel connectorYesNumber of SATA III connectors4USB 2.0 connectors2USB 3.2 Gen 1 (3.1 Gen 1) connectors1Ethernet LAN (RJ-45) ports1HDMI ports quantity1Headphone outputs1Line-inYesMicrophone inYesPS/2 ports quantity1USB 2.0 ports quantity4USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2Ethernet interface type2.5 Gigabit EthernetEthernet LANYesLAN controllerRealtek RTL8125Wi-FiNoAudio chipRealtek ALC897Audio output channels7.1Component forPCMotherboard chipsetAMD B840Motherboard chipset familyAMDMotherboard form factormicro ATXPower source typeATXWindows operating systems supportedWindows 10 x64/Windows 11 x64BIOS typeUEFI AMIBundled softwareNorton® Internet Security (OEM version) LAN bandwidth management softwareUnbuffered memoryYesNumber of chassis fan connectors1PCI Express x16 (Gen 3.x) slots1Maximum resolution4096 x 2160Parallel processing technology supportNot supportedEPS power connector (8-pin)YesTPM connectorYesHDMI version2.1PC health monitoringFan/Temperature/Voltage/Water coolingNumber of M.2 (M) slots2ACPI version5.0BIOS memory size256Clear CMOS jumperYesDesktop Management Interface (DMI) version2.7System Management BIOS (SMBIOS) version2.7Battery technologyLithium-Manganese Dioxide (LiMnO2)Battery typeCR2032Lithium weight per battery0.07Number of battery cells1Package depth265Package height54Package weight1026.4Package width265Products per shipping (inner) case1Batteries includedYesWarranty period3Cooling typePassiveProduct colourDark brownWeight940RGB LED pin headerYesNumber of CPU fan connectors2Maximum internal memory per slot64Number of EPS power connectors (8-pin)1Number of RGB LED pin headers31st M.2 highest PCI Express generation4.01st M.2 largest key size2580Screws includedYesPCI Express x16 (Gen 4.x) slots12nd M.2 highest PCI Express generation3.02nd M.2 largest key size2280Number of water pump connectors1ECC сompatibilityNon-ECCLong DescriptionGIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125Bullet Points- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital 5+2+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4
- Fast Networking : 2.5GbE LAN
NameMB AMD B840 SAM5 MATX/B840M D2H 1.1 GIGABYTEUnit Width26.5Unit Depth26.5Unit Height5.8Išbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą
