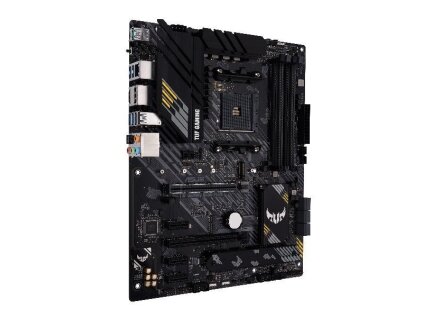

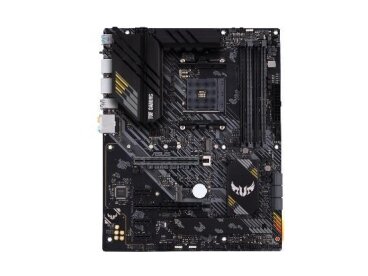

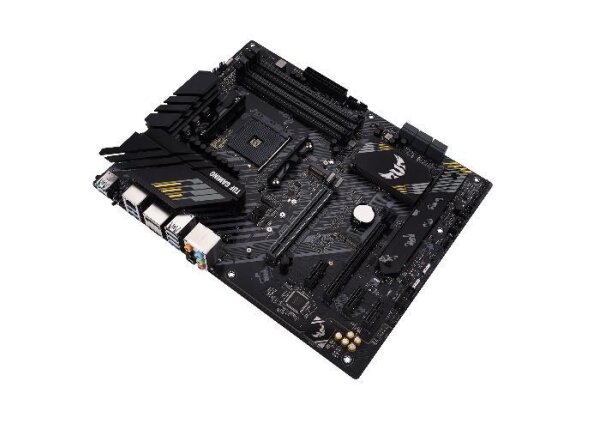

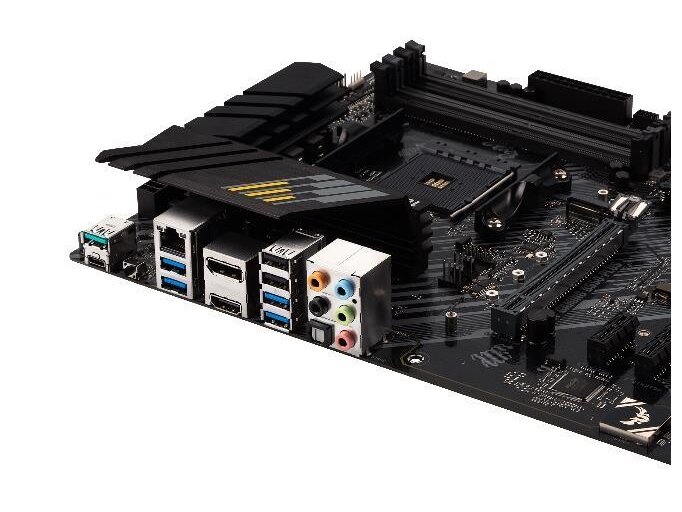

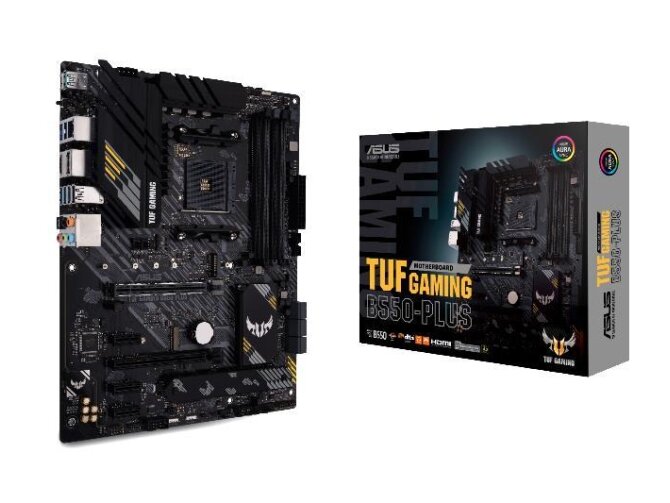

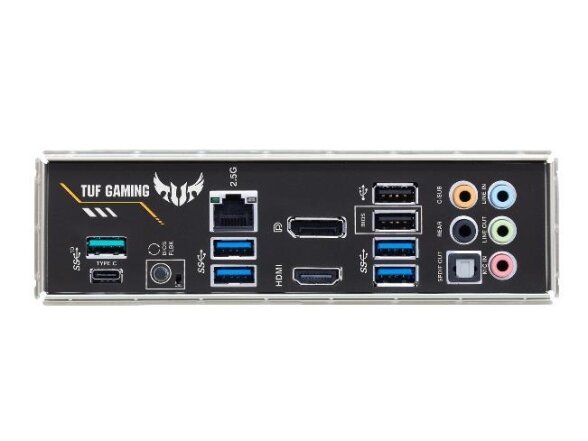

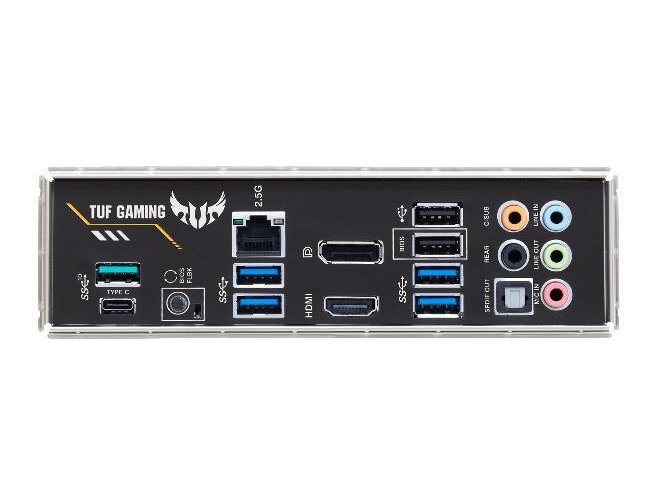

Mainboard|ASUS|AMD B550|SAM4|ATX|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|1xUSB type C|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|TUFGAMINGB550-PLUS
Kodas: 1302191Kaina 132.69 €Netinka kaina? Siūlyk savo!Preliminarus pristatymo terminas: 2 - 4 d. d.Šią prekę turime sandėlyje.Likutis: 1 vnt.Lizingo skaičiuoklės- artea
-
AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: provides crystal-clear in-game voice communication
GamintojasGarantija36AprašymasAMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: provides crystal-clear in-game voice communication
Gamintojo internetinis puslapiswww.asus.com/Motherboards/TUF-GAMING-B550-PLUS/MikroschemaAMD B550Korpuso tipasATXTaktinis dažnis2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800Atminties lizdai4M.2 jungtis2Integruota video pl.Priklausomai nuo procesoriausIntegruota audioYesIntegruota LAN jungtisGigabitEsami priedaiUser's manual;I/O Shield;2 x SATA 6Gb/s cable(s);Supporting DVD;TUF Gaming Sticker;TUF Certification card(s);M.2 SSD screw package(s);M.2 Rubber Package(s)Kategorijos kodasMBASATA 3.0TaipCategory CodeMBAUnits per Shipping Box5Unit Calculated Volume0.007884Product Net Weight1.3Unit Calculated Weight1.67SummaryASUS TUF Gaming B550-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125BCompatible processor seriesAMD Ryzen 3000 SeriesProcessor manufacturerAMDProcessor socketSocket AM4Supported processor socketsSocket AM4Maximum internal memory128Memory channelsDual-channelMemory slots typeDIMMNumber of memory slots4Supported memory clock speeds2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4600Supported memory typesDDR4-SDRAMRAID levels0/1/10Supported storage drive interfacesM.2,SATAATX Power connector (24-pin)YesCPU fan connectorYesFront panel audio connectorYesNumber of SATA III connectors6USB 2.0 connectors2USB 3.2 Gen 1 (3.1 Gen 1) connectors1Ethernet LAN (RJ-45) ports1HDMI ports quantity1PS/2 ports quantity1USB 2.0 ports quantity2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4Ethernet interface type2.5 Gigabit EthernetEthernet LANYesLAN controllerRealtek RTL8125BWi-FiNoAudio chipRealtek ALC S1200AAudio output channels7.1Component forNettopMotherboard chipsetAMD B550Motherboard chipset familyAMDMotherboard form factorATXWindows operating systems supportedWindows 10 x64PCI Express x1 (Gen 3.x) slots3BIOS typeUEFI AMINumber of chassis fan connectors3PCI Express x16 (Gen 3.x) slots1Harmonized System (HS) code84733020Cables includedSATADrivers includedYesParallel processing technology support2-Way CrossFireXEPS power connector (8-pin)YesTPM connectorYesNumber of M.2 (M) slots2BIOS memory size256Clear CMOS jumperYesWeight945Maximum number of SMP processors1USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1DisplayPorts quantity1USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1PCI Express x16 (Gen 4.x) slots1Number of SATA connectors4S/PDIF out portYesECC сompatibilityECCNameMB AMD B550 SAM4 ATX/TUF GAMING B550-PLUS ASUSUnit Width27Unit Depth34Unit Height7Išbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą
