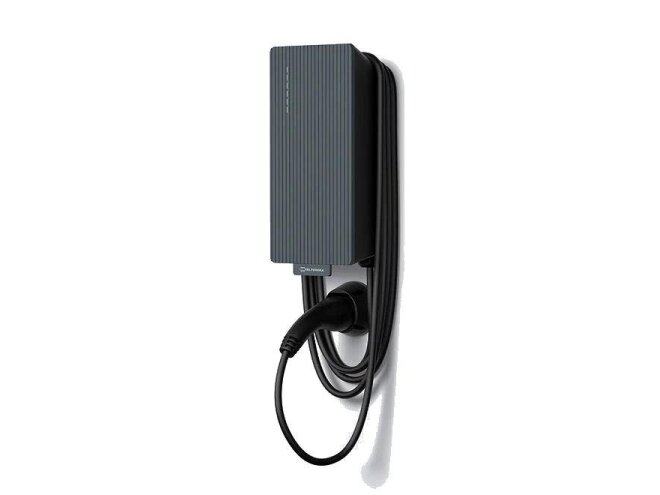

ELECTRIC CAR CHARGE CABLE 11KW/3PHASE EVC2001120S0 TELTONIKA
Kodas: 1467187Kaina 624.58 €Netinka kaina? Siūlyk savo!Preliminarus pristatymo terminas: 2 - 4 d. d.Šią prekę turime sandėlyje.Likutis: 3 vnt.Lizingo skaičiuoklės- artea
-
11kW (16A / 3-phase) 5 m cable.
Description:11kW (16A / 3-phase) 5 m cable.
GamintojasTELTONIKAGarantija12Category CodeEVCUnits per Shipping Box1Unit Calculated Volume0.05597Product Net Weight3Unit Calculated Weight6.4NameEV CHARGER 11KW EVC2 3PH/EVC2001120S0 TELTONIKALong DescriptionMain features
DIMENSIONS Width 190mm, Height 401mm, Depth 125mm
OUTPUT OPTIONS Type 2 cable 5m
FRONT PLATE OPTIONS Not included
Cable holder not included
CONTROL TYPES Android app – Bluetooth and Local Wifi, iOS app – Bluetooth
OCPP 1.6 – Ethernet, wifi, 4G
POWER OPTIONS 11kw three phase
Detailed specifications
CERTIFICATIONS
CE, RCM & UKCA compliant
Codes and standards: 2014/35/EU, 2014/53/EU, IEC 61851-1, IEC 61851-21-2, IEC 62955
Environment - 2011/65/EU, REACH, RoHS, EUR1
CHARGER CONNECTIVITY
WiFi 2.4 Ghz b/g/n connection
Bluetooth low energy 5.0
NFC card reader ISO 14443A
Ethernet (RJ45)
4G/LTE (CAT 1)
INPUT CABLING
Cable entry diameter — Up to 25mm
Wiring cable cross section in connectors — Up to 10mm2
Cable entry from option from bottom
Cable entry from option from back
PROTECTION
Input and output voltage and current monitoring
Overvoltage category — OVC III
Protection against electric shock
Residual current detection 6 mA DC (IEC 62955)
Ground fault detection
Degree of dust and water protection — IP56
Impact resistance — IK10
Fire class — UL94
RATED FREQUENCY 50/60 Hz
NETWORK/GROUNDING TYPES TN and TT
VOLTAGE Three phase: 400 V (±10%)
OPERATING SPECIFICATIONS
Humidity to 95% RH non condensing
Operating temperature: -30ºC - +50ºC
Storage temperature: -40ºC - +60ºC
TEMPERATURE SENSORS In all main components
LED INDICATOR LIGHTS Showing charging sequence and warnings/errors
BUILT IN ENERGY METERING Accuracy deviation <1%
LOAD BALANCING
Static load balancing
Dynamic load balancing
Automatic phase balancing
Multi-device load balance
Multi-level load balance
Solar energy modes
Zero potential contact
Multi sensor supportBullet PointsRain or shine our charger will work every time. Made in EU with a rigorous quality control at every manufacturing step. 36-month standard warranty, extendable up to 60 months. IP 56 dust and water resistant. IK10 impact protection. Operating temperature ranges from -30 °C to +50 °C.
Cable entry is possible both from the back of the device – for a more elegant, seamless look on the wall – or from the bottom, ensuring an even more secure and weather-resistant fit. This flexibility allows for easier installation in different environments while maintaining a clean appearance and strong protection against external factors such as moisture, dust, and impact.
Front plate need to order seperatelly.
Cable holder need to order seperatelly.Unit Height26Unit Depth54.5Unit Width39.5SummaryMain features
DIMENSIONS Width 190mm, Height 401mm, Depth 125mm
OUTPUT OPTIONS Type 2 cable 5m
FRONT PLATE OPTIONS Not included
Cable holder not included
CONTROL TYPES Android app – Bluetooth and Local Wifi, iOS app – Bluetooth
OCPP 1.6 – Ethernet, wifi, 4G
POWER OPTIONS 11kw three phase
Detailed specifications
CERTIFICATIONS
CE, RCM & UKCA compliant
Codes and standards: 2014/35/EU, 2014/53/EU, IEC 61851-1, IEC 61851-21-2, IEC 62955
Environment - 2011/65/EU, REACH, RoHS, EUR1
CHARGER CONNECTIVITY
WiFi 2.4 Ghz b/g/n connection
Bluetooth low energy 5.0
NFC card reader ISO 14443A
Ethernet (RJ45)
4G/LTE (CAT 1)
INPUT CABLING
Cable entry diameter — Up to 25mm
Wiring cable cross section in connectors — Up to 10mm2
Cable entry from option from bottom
Cable entry from option from back
PROTECTION
Input and output voltage and current monitoring
Overvoltage category — OVC III
Protection against electric shock
Residual current detection 6 mA DC (IEC 62955)
Ground fault detection
Degree of dust and water protection — IP56
Impact resistance — IK10
Fire class — UL94
RATED FREQUENCY 50/60 Hz
NETWORK/GROUNDING TYPES TN and TT
VOLTAGE Three phase: 400 V (±10%)
OPERATING SPECIFICATIONS
Humidity to 95% RH non condensing
Operating temperature: -30ºC - +50ºC
Storage temperature: -40ºC - +60ºC
TEMPERATURE SENSORS In all main components
LED INDICATOR LIGHTS Showing charging sequence and warnings/errors
BUILT IN ENERGY METERING Accuracy deviation <1%
LOAD BALANCING
Static load balancing
Dynamic load balancing
Automatic phase balancing
Multi-device load balance
Multi-level load balance
Solar energy modes
Zero potential contact
Multi sensor supportIšbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą
