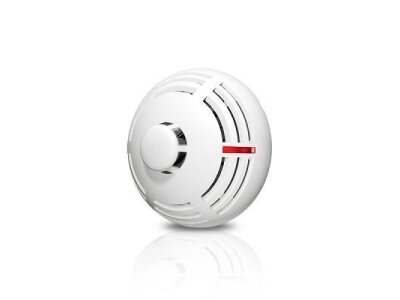

The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni-directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP-switches and built-in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12V power supply.

- unique Swirl chamber for increased smoke sensitivity

- EN54-7 compliant smoke detection

- EN54-5 compliant heat detection

- selectable operating mode (smoke, heat, multisensor)

- line type configuration (NO/NC/2EOL) with DIP switches

- precision stainless steel Hexamesh filter

- smoke chamber dirt build-up indicator

- easy installation with detachable base

- compatible with all 12V alarm panels
